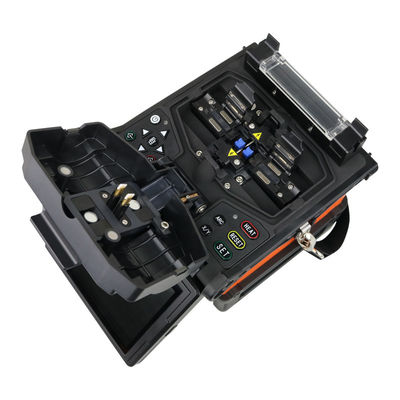

Large-Diameter Single Fiber Fusion Splicer Splicing Silica Glass Fibers with Cladding Diameters from Ø200µm to Ø400µm
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Applicable Fibers | Used For 200μm To 400μm Cladding Fiber | Material | Silica Glass Single Fiber |
|---|---|---|---|
| Typical Average Splicing Loss | 0.02dB (SM), 0.01dB (MM), 0.04dB (DSF), 0.04dB (NZDSF) | Average Return Loss | >60dB |
| Splicing Mode | Manual, Half Auto, Auto | Fiber Alignment | Core To Core Alignment Basis PAS Technology |
| Splicing Time | ≤8s, SM Auto Mode | Heating Time | ≤30s, Auto Heat |
| Cleaved Length | 8～16mm | Fiber Image/ Magnification | 2 CMOS Cameras Observation, 200x For Single X Or Y Axis View, Or 150x For Both X And Y Dual Axis View |
| View Display | 5-inch Digital High-resolution LCD Monitor With High Strength Protection Panel | Tension Test | Standard 4N (Support Opening Or Closing Manually On Menu) |
| Heat Shrinkable Sleeve | 60mm, 40mm Or Other Serials Heat Shrinkable Sleeve | Storage Of Splice Result | 8000 Results Stored In The Internal Memory |
| Battery Capacity | 200 Cycles Splicing And Heating, 3 Hours Charging Time (Support Splicing And Charging At The Same Time) | Battery Life | Cycling Charge 300-500 Times, Easy To Replace Battery |
| Electrodes Life | 3-5000 Splices, Easy To Replace Electrodes | Power Consumption | ≤20W |
| Construction Lighting | Built In High Brightness, Wide Range Of Lights, Easy To Operate At Night | Power Supply | Built In Lithium Battery 5200mAh 11.1V, External Adapter, Input: AC100-240V, Output: DC13.5V/4.5A |
| Operating Condition | 0 To 5000m Above Sea Level, Temperature: -10 To +60℃, Humidity:0～95%RH (No Dew), Wind Velocity: Up To 20m/sec | Weight | 2.1KG (including Battery) |
| Dimension (L X W X H) | 135mm(L)×158mm(W)×155mm(H) |
Product Description
Large Diameter Single Fiber Fusion Splicers
Speed & Ruggedness & Reliability
Performance & Cost-effective
Auto & Precision & Durable
Description
The core alignment fusion splicer LDFS9101 provides excellent splice loss performance. And equipped with a user-friendly GUI on a high-resolution color LCD allowing first-time splicer users to easily connect to the optical fiber. While utilizing a conventional wind protector and tube heater structure, it includes an auto-start feature for both the splicing and tube heating process that minimizes the steps necessary to process splices. With a splicing time of 8 seconds and a shrink time of 30 seconds with standard splice sleeves, the LDFS9101 ensures a high level of productivity. Battery capacity is 200+ splices/shrinks and 3 hours for charging. The main body adopts a ruggedized feature design, durability is greatly enhanced, realizes that shock, water, and dust resistance for use in harsh environments.
Features
- Used for 200μm to 400μm cladding fiber
- Core to core alignment basis PAS technology
- 4 motors,8s splicing time, and 30s heating shrink time with standard sleeves
- 200x magnification for single X or Y axis view, or 150x for both X and Y dual axis view
- 5-inch digital high-resolution LCD monitor with high strength protection panel
- Fiber holders suit for 200μm to 400μm cladding or coating fiber (customized)
- Interchangeable fiber holders and heater
- 3~5000 splices electrode life, exchangeable without tools
- Long-life large capacity lithium battery of 200+ splice & heat cycles per charge
- Shock, impact, water, and dustproof in harsh environments
- Compact, Small size, and lightweight, 1.98KG including battery
- Language support Chinese, English, French, Russian, Spanish, Portuguese, and Italian (Only one set)
Specifications
| Model | LDFS9101 Fusion Splicer |
| Material | Silica glass Single Fiber |
| Applicable Fibers | SM, MM, DSF, NZDSF |
| Typical Average Splicing Loss 1 | 0.02dB (SM), 0.01dB (MM), 0.04dB (DSF), 0.04dB (NZDSF) |
| Average Return Loss | >60dB |
| Splicing Mode | Manual, Half Auto, Auto |
| Fiber Alignment | Core to Core Alignment basis PAS technology |
| Applicable Cables | Used for 200μm to 400μm cladding fiber |
| Splicing Time | ≤8s, SM Auto Mode |
| Heating Time | ≤30s, Auto Heat |
| Cleaved Length | 8～16mm |
| Fiber Image/ Magnification |
2 CMOS cameras observation, 200x for single X or Y axis view, or 150x for both X and Y dual axis view |
| View Display | 5-inch digital high-resolution LCD monitor with high strength protection panel |
| Tension Test | Standard 4N (Support opening or closing manually on the menu) |
| Heat Shrinkable Sleeve | 60mm, 40mm or other serials heat Shrinkable Sleeve |
| Storage of Splice result | 8000 results are stored in the internal memory |
| Battery Capacity 2 |
200 cycles splicing and heating, 3 hours charging time (Support splicing and charging at the same time) |
| Battery Life | Cycling charge 300-500 times, easy to replace battery |
| Electrodes Life 3 | 3-5000 splices, easy-to-replace electrodes |
| Power Consumption | ≤20W |
| Construction Lighting | Built in high brightness, wide range of lights, easy to operate at night |
| Power supply |
Built-in lithium battery 5200mAh 11.1V, External adapter, input: AC100-240V, output: DC13.5V/4.5A |
| Operating Condition |
0 to 5000m above sea level, Temperature: -10 to +60℃, Humidity:0～95%RH (No dew), Wind velocity: up to 20m/sec |
| Weight | 2.1KG (including battery) |
| Dimension (L x W x H) | 135mm(L)×158mm(W)×155mm(H) |
Note:
1. Measured by cut-back method relevant to ITU-T standards.
2. Splice & Heat cycles may vary depending on the battery status and the operating environment.
3. Achieved in lab condition. Electrode life may vary depending on the operating environment.
Standard Package
| No. | Name | Qty |
| 1 | Fusion Splicer | 1 set |
| 4 | AC Adapter | 1 pc |
| 5 | Power Cord | 1 pc |
| 6 | Lithium Battery | 1 pc |
| 7 | Spare Electrodes | 1 pair |
| 8 | Cooling Tray | 1 pc |
| 9 | User Manual | 1 pc |
| 10 | Carrying Case | 1 pc |
Order Information
| Part # | Model No. | Description |
| 31562 | LDFS9101-200 |
1. Power Cord: One (USA, UK, Euro, etc.) 2. Language: One (English, French, Russian, Spanish, Portuguese, Italian, Indonesian, German, Simplified Chinese, Traditional Chinese) 3. Boot Screen: Customization 4. Application: 200μm Cladding Single fiber splicing |
Accessories (Options/Consumables) sold separately
| Part # | Model No. | Description | Remarks |
| 31470 | SE-72 | Spare Electrodes, 1 pair, 3000 times, easy to replace | |
| 31487 | LB-325 | Lithium Battery, cycling charge 300-400 times, easy to replace, 5200mAh 11.1V | |
| 31494 | PC-13 | Power Cord | |
| 31500 | PA-156 | AC Adapter, Input: AC100-240V, Output: DC13.5V/4.5A | |
| 31517 | LCD-260 | 5-inch digital high-quality LCD screen | |
| 31524 | HTR-260 | Heater |
| Part # | Model No. | Description | Remarks |
| 31210 | LDC9901 | Large Diameter Fiber Cleaver, Ø60µm to Ø600µm Cladding, Flat Cleaves | |
| 31227 | LTi-550 | Fiber Holder Left Top Insert, Ø550μm | |
| 31234 | LBi-550 | Fiber Holder Left Bottom Insert, Ø550μm | |
| 31241 | RTi-400 | Fiber Holder Right Top Insert, Ø400μm | |
| 31258 | RBi-400 | Fiber Holder Right Bottom Insert, Ø400μm |
| Part # | Model No. | Description | Remarks |
| 31265 | RB-9901 | Replacement Diamond Cleave Blade for LDC9901 |
