Versatile Handheld Power Meter, -70dBm to +6dBm, Auto-wavelength & Tone Recognition, Data Storage&Software Report

  • Versatile Handheld Power Meter, -70dBm to +6dBm, Auto-wavelength & Tone Recognition, Data Storage&Software Report
  • Versatile Handheld Power Meter, -70dBm to +6dBm, Auto-wavelength & Tone Recognition, Data Storage&Software Report
  • Versatile Handheld Power Meter, -70dBm to +6dBm, Auto-wavelength & Tone Recognition, Data Storage&Software Report
  • Versatile Handheld Power Meter, -70dBm to +6dBm, Auto-wavelength & Tone Recognition, Data Storage&Software Report
Place of Origin Shanghai
Brand Name Yogel
Certification RoHS
Model Number VPM2270D
Minimum Order Quantity 1
Price Negotiate
Packaging Details Oxford bag, Cartoon
Delivery Time 5-8 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 1,000 pieces per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Date Storage Capacity 1000 Communication Port USB
Frequency ID（Hz） 270，1K，2K Calibration Wavelength（nm） 850/1300/1310/1490/1550/1625
Detector Type InGaAs Measurement Range（dBm） -70~+6, -50~+26 CATV Model
Uncertainty ±0.15dB Linearity (dB) ±0.02
Display Resolution(dB) 0.01 Optical Interface See To Order Information
Auto-off Time（min） 10 Battery Alkaline, 3xAA, 1.5v
Dimensions（mm） 200X90X50
Leave a Message
Product Description

Versatile Handheld Optical Power Meters





Description

The power meter is meant to meet the high demands of fiber optic testing. It can be used for the absolute power measurement and relative measurement of the link loss in dB. Its compact size, user-friendly interface, broad power measurement range, brand-new user automatic calibration function, and precision make it a high-performance testing device ideal for network testing. Different style adapter caps are included.





Features

  • Zero Set Reference Storage Ability at Each Wavelength
  • Wave ID—Auto wavelength identification & switching
  • Frequency ID ---Auto frequency identification

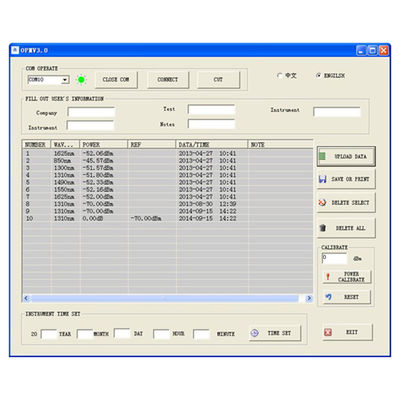

  • 1000 records storage or download via USB cable
  • USB communication port for saved testing records download
  • The reference power level can be set up and stored
  • User self-calibrating function
  • 10 minutes Auto Shut Off
  • 200-Hour Battery Life
  • Battery Level Indicator
  • Protective Carrying Case
  • Convenient Backlight Screen
  • 3 Alkaline AA Batteries



Specifications



ITEM VPM22
Calibration Wavelength(nm) 850/1300/1310/1490/1550/1625
Detector type InGaAs
Measurement Range(dBm) -70～+6 -50～+26
Uncertainty (dB) ±0.15(3.5%)
linearity (dB) ±0.02
Display resolution(dB) 0.01
Frequency ID(Hz) 270,1K,2K
Date Storage Capacity 1000
Communication Port USB
Optical Interface See to Order Information
Alkaline battery 3*AA,1.5V
Power Adapter(V) 8.4
Battery Operating time (h) 200 without backlight
Operation Temperature(℃) -10～+60
Storage Temperature(℃) -25～+70
Dimension(mm) 200*90*50
Weight(g) 285


Remark:

Battery operating time is based on the condition of the power off the backlight. If power is on the backlight continuously, the operation time will be shorter.





Order Information



1. Dynamic Measurement Range:

70: -70dBm to +6dBm Broadband Version

50: -50dBm to +26dBm CATV Version



2. Detector Area:

Ф0.3mm (Default),

Ф1.0mm or Ф2.0mm (Optional Especially for Multimode Testing)



3. Optical Interface:

S: FC Adapter Cap & Universal 2.5mm interface

D: SC, FC Switchable Adapter Caps & Universal 2.5mm interface

T: SC, FC, ST Switchable Adapter Caps & Universal 2.5mm interface





Samples:



Part # Model No. Description
70688 VPM2250S High Power Versatile Handheld Power Meter with 0.01dB Resolution, -50dBm to +26dBm CATV Version, Detector Area Ф0.3mm, w/ Auto-wavelength & Tone Recognition (Dedicated Digital Encrypted Protocol), Data Storage & USB to PC Software Report, FC Adapter Cap & Universal 2.5mm interface, Alkaline Battery (3xAA, 1.5V) & AC Power Supply Adapter
70695 VPM2250D High Power Versatile Handheld Power Meter with 0.01dB Resolution, -50dBm to +26dBm CATV Version, Detector Area Ф0.3mm, w/ Auto-wavelength & Tone Recognition (Dedicated Digital Encrypted Protocol), Data Storage & USB to PC Software Report, SC, FC Adapter Caps & Universal 2.5mm interface, Alkaline Battery (3xAA, 1.5V) & AC Power Supply Adapter
70701 VPM2270D Versatile Handheld Power Meter with 0.01dB Resolution, -70dBm to +6dBm Broadband Version, Detector Area Ф0.3mm, w/ Auto-wavelength & Tone Recognition (Dedicated Digital Encrypted Protocol), Data Storage & USB to PC Software Report, SC, FC Adapter Caps & Universal 2.5mm interface, Alkaline Battery (3xAA, 1.5V) & AC Power Supply Adapter


Note: Auto-wavelength Recognition is valid only when working with LS22 Series built-in dedicated digital encrypted protocol.
