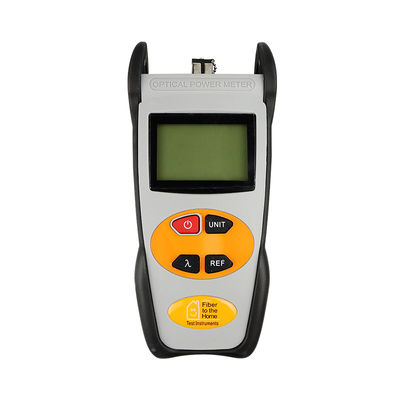

High Power Basic Handheld Power Meter, -50dBm to +26dBm CATV Version, w/o Auto-wavelength/Tone Recognition

  • High Power Basic Handheld Power Meter, -50dBm to +26dBm CATV Version, w/o Auto-wavelength/Tone Recognition
  • High Power Basic Handheld Power Meter, -50dBm to +26dBm CATV Version, w/o Auto-wavelength/Tone Recognition
  • High Power Basic Handheld Power Meter, -50dBm to +26dBm CATV Version, w/o Auto-wavelength/Tone Recognition
  • High Power Basic Handheld Power Meter, -50dBm to +26dBm CATV Version, w/o Auto-wavelength/Tone Recognition
Place of Origin Shanghai
Brand Name Yogel
Certification RoHS
Model Number BPM2270D
Minimum Order Quantity 1
Price Negotiate
Packaging Details Oxford bag, Cartoon
Delivery Time 5-8 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 1,000 pieces per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Calibration Wavelength（nm） 850/1300/1310/1490/1550/1625 Detector Type InGaAs
Measurement Range（dBm） -70~+6, -50~+26 CATV Model Uncertainty ±0.15dB
Accuracy Linear 0.1% Or Nonlinear 0.01dBm Optical Interface See To Order Information
Auto-off Time（min） 10 Battery Alkaline, 3xAA, 1.5v
Dimensions（mm） 200X90X50
Leave a Message
Product Description

Basic Handheld Optical Power Meters





Description

The power meter is meant to meet the high demands of fiber optic testing. It can be used for the absolute power measurement and relative measurement of the link loss in dB. Its compact size, user-friendly interface, broad power measurement range, brand-new user automatic calibration function, and precision make it a high-performance testing device ideal for network testing. Different style adapter caps are included.





Features

  • Zero Set Reference Storage Ability at Each Wavelength
  • 10 minutes Auto Shut Off
  • 300-Hour Battery Life
  • Battery Level Indicator
  • Protective Carrying Case
  • Convenient Backlight Screen
  • 3 Alkaline AA Batteries



Specifications



Item BPM22
Wavelength Range(nm)*1 800~1700
Calibration Wavelength(nm) 850/1300/1310/1490/1550/1625
Detector Type InGaAs
Measurement Range(dBm)*2 -70~+6 -50~+26 CATV Model
Uncertainty *3 ±0.15dB
Accuracy Linear 0.1% or Nonlinear 0.01dBm
Optical Interface See to Order Information
Operating Temperature(℃) -10~+60
Storage Temperature(℃) -25~+70
Auto-off Time(min) 10
Battery Alkaline, 3xAA, 1.5v
Weight(g) 285
Dimensions(mm) 200X90X50



Notes:



1. Wavelength Range: Specified standard operating wavelength range in which the Power Meter can work properly under certain technical specifications.

2. Power Measurement Range: The maximum and minimum range in which the Power Meter can work properly, typical for single-mode.

3. Uncertainty: Difference between two measurement results that were tested by Power Meter and another Standard Power Meter respectively.





Order Information



1. Dynamic Measurement Range:

70: -70dBm to +6dBm Broadband Version – LAN test, Outside plant test, Contractor

50: -50dBm to +26dBm CATV Version-High Power – FTTH solutions test, MSO CATV test, HFC

2. Detector Area:

Ф0.3mm (Default),

Ф1.0mm or Ф2.0mm (Optional Especially for Multimode Testing)

3. Optical Interface:

S: FC Adapter Cap & Universal 2.5mm push-pull Adapter

D: SC, FC Switchable Adapter Caps & Universal 2.5mm push-pull Adapter

T: SC, FC, ST Switchable Adapter Caps & Universal 2.5mm push-pull Adapter



Samples:



Part # Model No. Description
70657 BPM2250S High Power Basic Handheld Power Meter with 0.01dB Resolution, -50dBm to +26dBm CATV Version, Detector Area Ф0.3mm, w/o Auto-wavelength/Tone Recognition, FC Adapter Cap & Universal 2.5mm interface, Alkaline Battery (3xAA, 1.5V)
70664 BPM2250D High Power Basic Handheld Power Meter with 0.01dB Resolution, -50dBm to +26dBm CATV Version, Detector Area Ф0.3mm, w/o Auto-wavelength/Tone Recognition, SC, FC Switchable Adapter Caps & Universal 2.5mm interface, Alkaline Battery (3xAA, 1.5V)
70671 BPM2270D Basic Handheld Power Meter with 0.01dB Resolution, -70dBm to +6dBm Broadband Version, Detector Area Ф0.3mm, w/o Auto-wavelength/Tone Recognition, SC, FC Switchable Adapter Caps & Universal 2.5mm interface, Alkaline Battery (3xAA, 1.5V)
