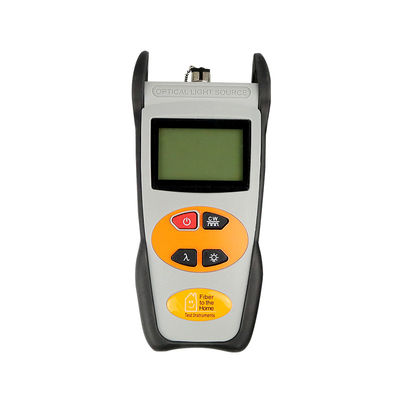

Basic Handheld Optical Light Source, Single-mode Dual 1310/1550nm, FP-LD, 9/125μm, w/ Tone Generation, UPC Polishing

  • Basic Handheld Optical Light Source, Single-mode Dual 1310/1550nm, FP-LD, 9/125μm, w/ Tone Generation, UPC Polishing
  • Basic Handheld Optical Light Source, Single-mode Dual 1310/1550nm, FP-LD, 9/125μm, w/ Tone Generation, UPC Polishing
  • Basic Handheld Optical Light Source, Single-mode Dual 1310/1550nm, FP-LD, 9/125μm, w/ Tone Generation, UPC Polishing
  • Basic Handheld Optical Light Source, Single-mode Dual 1310/1550nm, FP-LD, 9/125μm, w/ Tone Generation, UPC Polishing
Place of Origin Shanghai
Brand Name Yogel
Certification RoHS
Model Number BLS22A-EU
Minimum Order Quantity 1
Price Negotiate
Packaging Details Cartoon
Delivery Time 5-8 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 1,000 pieces per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Operating Wavelength（nm） 1310/1550 (others Specify On Requests, Max Wavelength Is 5） Applicable Fiber SM, MM
Laser Type FP-LD, 9/125μm(1310/1550nm), 50/125μm (850/1300nm) (others Specify On Requests) Output Power（dBm） ≥-7
Stability(dB, 15min, 20℃) ±0.1 Stability(dB，30min，20℃) ±0.05
Modulation Modes（Hz CW (Continuous Wave)， 270， 1K，2K Optical Interface See To Order Information
Leave a Message
Product Description

Basic Handheld Optical Light Sources

MULTIWAVELENGTH CAPABILITY

Excellent stability & High measurement accuracy



Description

Basic light sources include a dual-wavelength multi-mode (850/1300nm, one port) or single-mode (1310/1550nm, one port) light source (others specify on requests, Max wavelength is 5 in one main body, like 1310/1490/1550nm, 850/1300/1310/1550nm, 850/1300/1310/1490/1550nm, etc.) with Fixed FC Adapter or Exclusive SC, FC Switchable Adapter Caps. When used with the power meter together, they provide accurate test solutions for fiber optic networks. Switchable adapters allow flexibility with reference cords.





Features

  • Zero Set Reference Storage Ability at Each Wavelength
  • 10 minutes Auto Shut Off
  • 60-Hour Battery Life
  • Battery Level Indicator
  • Protective Carrying Case
  • Convenient Backlight Screen
  • 3 Alkaline AA Batteries



Specifications



Items Descriptions
Operating wavelength(nm) 1310/1550 (others specify on requests, Max wavelength is 5)
Applicable fiber SM, MM
Laser type

FP-LD, 9/125μm(1310/1550nm), 50/125μm (850/1300nm)

(others specify on requests)
Output Power(dBm) ≥-7
Stability(dB, 15min, 20℃) ±0.1
Stability(dB,30min,20℃) ±0.05
Modulation Modes(Hz) CW (Continuous Wave), 270, 1K,2K
Optical Interface See to Order Information
Alkaline Battery Alkaline, 3xAA, 1.5v
Battery Operating time(h) 60
Operation Temperature(℃) -10～+60
Storage Temperature(℃) -25～+70
Outline size(mm) 200 X90 X50
Weight(g) 285





Order Information



  1. Wavelength: (Number of Max. ports: 3)

A: 1310/1550nm (one port) – Outside plant test, MSO CATV test

M: 850/1300nm (one port) – LAN test

G: 1310/1490/1550nm (two ports) – FTTH solutions test

MA: 850/1300/1310/1550nm (two ports) - Contractor

MD: 850/1300/1310/1490/1550nm (three ports)

  1. Optical Interface:

F: Fixed FC Adapter

E: Exclusive SC, FC Switchable Adapter Caps

T: Exclusive SC, FC & ST Switchable Adapter Caps

P: Premium SC & FC Switchable Adapters

  1. Interface Polishing:

U: UPC (Default)

A: APC

  1. Visual Fault Locator - 650nm (Optional) – one port

1mW, 10mW, 20mW

  1. Interface (VFL):

L: FC Adapter Cap & Universal 2.5mm push-pull adapter

X: FC, SC Switchable Adapter Caps & Universal 2.5mm push-pull adapter





Samples:



Part # Model No. Description
70763 BLS22A-EU Basic Handheld Optical Light Source, Single-mode Dual 1310/1550nm, FP-LD, 9/125μm, w/ Tone Generation, w/o Auto-wavelength Generation/Recognition (Dedicated Digital Encrypted Protocol), Exclusive SC, FC Switchable Adapter Caps, UPC Polishing Interface, Alkaline Battery (3xAA, 1.5V)
70770 BLS22M-EU Basic Handheld Optical Light Source, Multimode Dual 850/1300nm, FP-LD, 50/125μm, w/ Tone Generation, w/o Auto-wavelength Generation/Recognition (Dedicated Digital Encrypted Protocol), Exclusive SC, FC Switchable Adapter Caps, UPC Polishing Interface, Alkaline Battery (3xAA, 1.5V)
71142 BLS22MA-EU Basic Handheld Optical Light Source, Single-mode & Multimode 850/1300/1310/1550nm, FD-LD, 50/125μm & 9/125μm, w/ Tone Generation, w/o Auto-wavelength Generation/Recognition (Dedicated Digital Encrypted Protocol), Exclusive SC, FC Switchable Adapter Caps, UPC Polishing Interface, Alkaline Battery (3xAA, 1.5V)
71159 BLS22A-EU01X Basic Handheld Optical Light Source(BLS+VFL Integrated), Single-mode Dual 1310/1550nm, FP-LD, 9/125μm, w/ Tone Generation, w/o Auto-wavelength Generation/Recognition (Dedicated Digital Encrypted Protocol), Exclusive SC, FC Switchable Adapter Caps @ BLS Port , UPC Polishing Interface, 650nm 1mW VFL, FC, SC Switchable Adapter Caps & Universal 2.5mm interface @ VFL Port, Alkaline Battery (3xAA, 1.5V)
