Nufern Coherent 780-HP Fiber Type Single Mode FC/PC Fiber Optic Patch Cables

Place of Origin	Shanghai
Brand Name	Yogel
Certification	RoHS
Model Number	UFC-S-780HP
Minimum Order Quantity	1
Price	Negotiate
Packaging Details	Anti-static bag, Cartoon
Delivery Time	5-8 work days
Payment Terms	L/C, T/T, Western Union
Supply Ability	1,000 pieces per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Wavelength	From 320 Nm To 2300 Nm	Connector Type	FC/PC (SENKO, SG Optional)
Fiber Type	780-HP (Nufern/Coherent, Corning Optional)	Tube Type	3.0mm (0.9mm, 6.0mm Optional)
Color	Black (White, Yellow, Orange Optional)	Cable Length	1 Meter (Optional)

Leave a Message

Product Description

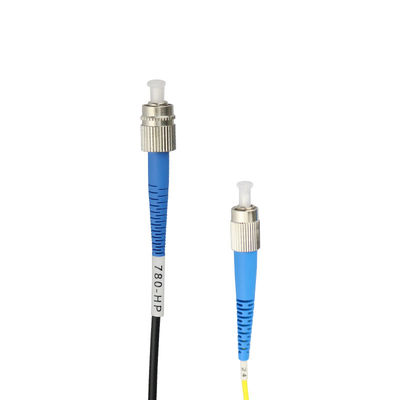

Single Mode FC/PC Fiber Optic Patch Cables

SM Patch Cables for Signal Transmission from 320 nm to 2300 nm

Description

We offer single-mode patch cables with FC/PC connectors on both ends. Each cable is manufactured in our facility on state-of-the-art equipment. Available from stock, these cables feature either Ø3.0mm PVC protective jackets or Ø900 µm Hytrel^® furcation tubing. The thinner profile of the Ø900 µm jacketed cables allows them to be used with Manual Fiber Polarization Controllers (available).

Each patch cable includes two protective caps that shield the ferrule ends from dust and other contaminants. Mating sleeves (Adaptors) are available to connect FC to FC and FC to SMA connectors. These mating sleeves minimize back reflections and ensure proper alignment of the cores of each terminated fiber end.

If you cannot find the appropriate stock patch cable your application requires, we also offer custom patch cables with very short time shipping.

Notes:

The Default FC/PC Connector Subassemblies we using is SENKO Brand from Japan, we also have store SEIKOH GIKEN Brand from Japan, ZANNECT Brand from China, if you have questions about this part, please contact us for details.
We priority select Nufern/Coherent Brand Single Mode Fiber from the USA, and also have store various Premium Specialty Fibers from China.
Custom Tube Diameter, Color & Material Available.
SEIKOH GIKEN 2.0mm Narrow Key FC-FC female Mating sleeve (Adaptor Model No.: SAN-1) is available.
Made in China.

Features

SM Patch Cables for Signal Transmission from 320 nm to 2300 nm
Terminated on Both Ends with High-Quality Ceramic FC/PC Connectors (SENKO Brand Default)
FC/PC 2.0mm Narrow Key Connectors on Both Ends
One End Labeled with Marks (Customized) for Easy Identification
Low Back Reflections (High Return Loss): 50 dB (Typ.)
Available from Stock
Two Dust Caps Included

Specifications

Table 1:

Model No.	UFC-S-405HP	UFC-S-460HP	UFC-R-630HP	UFC-S-630HP
Fiber Type	405-HP	460-HP	630-HP
Operating Wavelength	400 – 550 nm	450 – 600 nm	600 – 770 nm
Cutoff Wavelength	370 ± 20 nm	430 ± 20 nm	570 ± 30 nm ^a
Mode Field Diameter(Gaussian) (MFD) ^b	3.5 ± 0.5 µm @ 515 nm	3.5 ± 0.5 µm @ 515 nm	4.0 ± 0.5 µm @ 630 nm
Cladding Diameter	125.0 ± 1.0 µm	125 ± 1.0 µm	125 ± 1.0 µm
Coating Diameter	245.0 ± 15.0 µm	245 ± 15 µm	245 ± 15 µm
Core Attenuation ^c	≤ 30.0 dB/km @ 515 nm ≤ 12.0 dB/km @ 630 nm	≤ 12.0 dB/km @ 630 nm ≤ 30.0 dB/km @ 515 nm	≤ 12.0 dB/km @ 630 nm
Core NA	0.130	0.130	0.130
Insertion Loss (Typical)	2.5 dB Loss @ 405 nm (Connector to Connector)	2.5 dB Loss @ 488 nm (Connector to Connector)	2.0 dB Loss @ 633 nm (Connector to Connector)
Protective Jacketing	Ø3 mm Yellow PVC Furcation Tubing		Ø900 µm Yellow Hytrel^® Tubing	Ø3 mm Yellow PVC Furcation Tubing
Return Loss	50 dB Typical (40 dB Min)
Connectors	FC/PC Narrow Key (2.0 mm) on Both Ends
Length ^d	1 m (for Model No. Ending in -1) 2 m (for Model No. Ending in -2) 5 m (for Model No. Ending in -5) 10 m (for Model No. Ending in -10)

Notes:

Fiber is hand selected to ensure higher cutoff wavelength. For SM operation near the cutoff wavelength, launch conditions need to be taken into consideration
MFD is nominal, calculated value, estimated at the operating wavelength(s)
Attenuation is specified for unterminated fiber
Different lengths are optional as requested, but not all cable types are available in all lengths

Table 2:

Model No.	UFC-R-780HP	UFC-S-780HP	UFC-S-980XP	UFC-S-980HP	UFC-S-980HP-80	UFC-S-980MHP-80
Fiber	780-HP		980-XP	980-HP	980-HP-80	980M-HP-80
Operating Wavelength	780 – 970 nm		980 – 1600 nm	980 – 1600 nm ^a	980 – 1600 nm	980 – 1600 nm
Cutoff Wavelength	730 ± 30 nm		920 ± 30 nm	920 ± 30 nm	920 ± 30 nm	930 ± 30 nm
Mode Field Diameter (MFD) ^b	5.0 ± 0.5 µm @ 850 nm		4.2 ± 0.3 µm @ 980 nm 6.8 ± 0.5 µm @ 1550 nm	4.2 ± 0.3 µm @ 980 nm 6.8 ± 0.5 µm @ 1550 nm	4.2 ± 0.3 µm @ 980 nm 6.8 ± 0.5 µm @ 1550 nm	4.7 ± 0.3 µm @ 980 nm
Cladding Diameter	125.0 ± 1.0 µm		125.0 ± 0.5 µm	125.0 ± 1.0 µm	80.0 ± 1.0 µm	80.0 ± 1.0 µm
Coating Diameter	245.0 ± 15.0 µm		245.0 ± 10.0 µm	245.0 ± 15.0 µm	165.0 ± 10.0 µm	165.0 ± 10.0 µm
Core Attenuation ^c	≤ 3.5 dB/km @ 850 nm ≤ 4.0 dB/km @ 780 nm		≤ 3.0 dB/km @ 980 nm	≤ 3.5 dB/km @ 980 nm	≤ 3.5 dB/km @ 980 nm	≤ 3.0 dB/km @ 980 nm
Core NA	0.130		0.200	0.200	0.200	0.170
Insertion Loss (Typical)	1.5 dB Loss @ 780 nm (Connector to Connector)		1.0 dB Loss @ 980 nm 0.7 dB Loss @ 1064 nm (Connector to Connector)
Protective Jacketing	Ø900 µm Yellow Hytrel^® Tubing	Ø3 mm Yellow PVC Furcation Tubing	Ø3 mm Yellow PVC Furcation Tubing
Return Loss	50 dB Typical (40 dB Min)
Connectors	FC/PC Narrow Key (2.0 mm) on Both Ends
Length ^d	1 m (for Model No. Ending in -1) 2 m (for Model No. Ending in -2) 5 m (for Model No. Ending in -5) 10 m (for Model No. Ending in -10)

Notes:

The wavelength range is illustrative and not guaranteed
MFD is a nominal, calculated value, estimated at the operating wavelength(s)
Attenuation is specified for unterminated fiber
Different lengths are optional as requested, but not all cable types are available in all lengths

Table 3:

Model No.	UFC-R-1060XP	UFC-S-1060XP	UFC-R-SMF28U	UFC-S-SMF28U	UFC-S-1550BHP	UFC-S-SM1950
Fiber	1060-XP		SMF-28 Ultra		1550B-HP	SM1950
Operating Wavelength	980 – 1600 nm		1260 - 1625 nm		1460 – 1620 nm	1850 – 2200 nm
Cutoff Wavelength	920 ± 30 nm		<1260 nm		1400 ± 50 nm	1720 ± 80 nm
Mode Field Diameter (MFD) ^a	5.9 ± 0.5 µm @ 980 nm 6.2 ± 0.5 µm @ 1060 nm 9.5 ± 0.5 µm @ 1550 nm		9.2 ± 0.4 µm @ 1310 nm 10.4 ± 0.5 µm @ 1550 nm		9.5 ± 0.5 µm @ 1550 nm	8.0 µm @ 1950 nm (nominal)
Cladding Diameter	125.0 ± 0.5 µm		125 ± 0.7 µm		125.0 ± 1.0 µm	125.0 ± 1.0 µm
Coating Diameter	245.0 ± 10.0 µm		242 ± 5 µm		245.0 ± 15.0 µm	245.0 ± 15.0 µm
Core Attenuation ^b	≤ 1.5 dB/km @ 1060 nm ≤ 2.1 dB/km @ 980 nm		≤0.32 dB/km @ 1310 nm ≤0.18 dB/km @ 1550 nm		≤ 0.5 dB/km @ 1550 nm	20 dB/km @ 1900 nm ^c (Typical) 250 dB/km @ 2200 nm ^c (Typical)
Core NA	0.140		0.14		0.130	0.200
Insertion Loss (Typical)	0.7 dB Loss @ 1064 nm (Connector to Connector)		0.3 dB Loss @ 1310 nm (Connector to Connector)		0.3 dB Loss @ 1550 nm (Connector to Connector)	0.3 dB Loss @ 2000 nm (Connector to Connector)
Protective Jacketing	Ø900 µm Yellow Hytrel^® Tubing	Ø3 mm Yellow PVC Furcation Tubing	Ø900 µm Yellow Hytrel^® Tubing	Ø3 mm Yellow PVC Furcation Tubing	Ø3 mm Yellow PVC Furcation Tubing
Return Loss	50 dB Typical (40 dB Min)
Connectors	FC/PC Narrow Key (2.0 mm) on Both Ends
Length ^d	1 m (for Model No. Ending in -1) 2 m (for Model No. Ending in -2) 5 m (for Model No. Ending in -5) 10 m (for Model No. Ending in -10)

Notes:

MFD is a nominal, calculated value, estimated at the operating wavelength(s)
Attenuation is specified for unterminated fiber
Attenuation of SM1950 fiber is highly dependent on wavelength
Different lengths are optional as requested, but not all cable types are available in all lengths

Order Information

Connector Brand
Connector End A-Connector End B type
Fiber Type
Tubing type
Cable Length

Example:

Model No.: UFC-S-780HP-2

Simplex Single-Mode Fiber Optic Patch Cable, SENKO Connector, FC/PC-FC/PC, Nufern/Coherent, 780HP, Ø3.0mm Yellow PVC Furcation Tubing, 2 Meters
