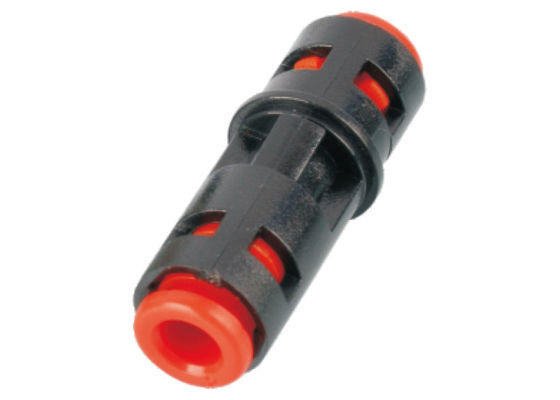

Bulkhead Micro Duct Connectors for Ducted Cable Networks

  • Bulkhead Micro Duct Connectors for Ducted Cable Networks
Place of Origin Shanghai
Brand Name Yogel
Certification RoSH
Model Number BSC-5/3.5
Minimum Order Quantity 1
Price USD 0.54 to 2.2 per Set
Packaging Details Inner PE bags, Outer Cartoon: 59x33x22cm
Delivery Time 5-8 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200,000 Sets per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Body POM Seal NBR
Washer POM Collar POM
Sleeve POM
Leave a Message
Product Description

Microduct Connectors & Sealing

Bulkhead Connector

Straight Connectors for Ducted Cable Networks



Description

The Bulkhead Connector is used for distributing and arranging the inner tubes of bundled microduct on the frame combined by the Mounting Rack and Patch Panel, which is mostly installed in the MDF room of the building. The structure of the bulkhead is to fix the connector to the hole of the Patch Panel. It’s also suitable to apply in Air Blown System.





Features

* Material: POM

* Leakage Pressure: 15 bar

* Negative Pressure: 750mm Hg (10 Torr)

* Proof Pressure: 25 bar

* Temperature Range: -10 ~60℃

* For Tubing Type: PE, PU, Nylon, Polyurethane

* Burst Pressure: > 25bar

* Water Immersion test: Pass (Waterproof)

* Push-fit test: Pass

* Hydraulic pressure test: Pass (Resisting at 13 bar for 2 minutes)




Order Information



Specification Duct OD/ID (mm) THR Bore(mm) Mounting Hole (mm)
Bulkhead BSC-5/3.5 5/3.5 3.5 12



Bulkhead Micro Duct Connectors for Ducted Cable Networks 0







Other Types



Bulkhead Micro Duct Connectors for Ducted Cable Networks 1





Model No. Duct OD/ID (mm) Mounting Hole (mm)
BMC6/4 6/4 14
BMC8/6 8/6 16
BMC10/8 10/8 20
BMC12/10 12/10 22
BMC14/10 14/10 24



More footprint types are available, please contact us for more information.
