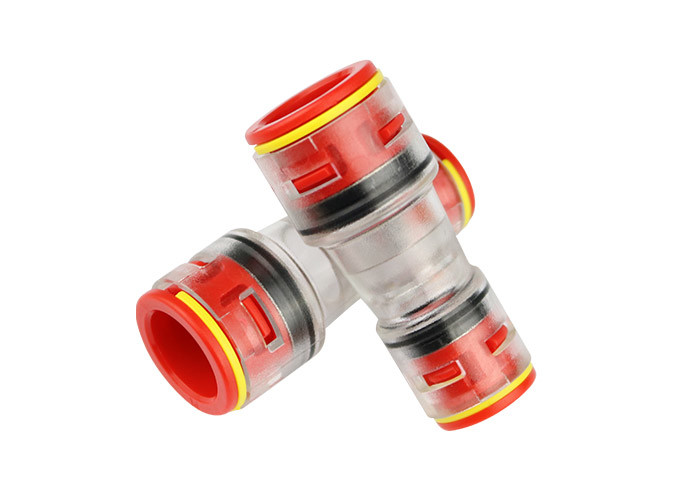

Reducer Micro duct Connectors with Locking Clips

  • Reducer Micro duct Connectors with Locking Clips
  • Reducer Micro duct Connectors with Locking Clips
  • Reducer Micro duct Connectors with Locking Clips
  • Reducer Micro duct Connectors with Locking Clips
  • Reducer Micro duct Connectors with Locking Clips
Place of Origin Shanghai
Brand Name Yogel
Certification RoSH
Model Number DI-RDL-10/8-8/6-DT
Minimum Order Quantity 1
Price USD 0.57 to 1.15 per Set
Packaging Details Inner PE bags, Outer Cartoon: 59x33x22cm
Delivery Time 5-8 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200,000 Sets per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Body Polycarbonate Seal / O-Rings Nitrile Rubber (NBR)
Washer Polyacetal Internal Teeth / Grip Ring / Lock Claws Stainless-Steel
Collar Polyacetal Collet Polyacetal
Leave a Message
Product Description

Microduct Connectors & Sealing

Direct Install – Blown Fiber Push-fit

Reducer Connectors with Locking Clips



Description

The Reducer allows interconnection between microducts that are difference in outer diameters. Usually, this is used in the point of tramstion from DB to DI microducts entering the office, house.



Features

  • Provides high-tensile, pressure-tight connection for microducts with different duct diameters
  • Base body made of impact-resistant material (proven with spade test followed by pressure test)
  • Transparent base body for visual inspection of the connection
  • Clamping teeth made of corrosion-free spring steel (tested according to EN 61386‑24 or EN 61386‑1)
  • Pre-fitted locking clips prevent accidental disengage when installed
  • Suitable for direct bury below ground and blow-in pressures up to 15 bar
  • Internal pressure test according to DIN 16874 (170 h/80 °C/4.0 MPa)
  • Can be removed and reused if necessary
  • Also suitable for in-house use, flame-retardant according to EN 61386-22 and halogen-free



Structure & Material

Reducer Micro duct Connectors with Locking Clips 0



No. Item Material & Description
1 Body Polycarbonate
2 Seal / O-Rings Nitrile Rubber (NBR)
3 Washer Polyacetal
4 Internal Teeth / Grip Ring / Lock Claws Stainless-Steel
5 Collar Polyacetal
6 Collet Polyacetal
  OD Outer Diameter
  ID Inner Diameter
  DI Direct Install
  DB Direct Bury



Notes:

  1. Please confirm the microduct outer diameter whether has damaged or scratches, connection face must be clean.
  2. Please confirm the microduct outer diameter nominal tolerances meets土0.1mm.
  3. Please make sure the connection microduct end face is cut into rectangular plane.
  4. Please confirm the microduct should be through the sealing ring, have been pushed to the end of the joint, until it couldn't go far again.
  5. After connecting the microducts, must check whether the duct can pull, then put into use.
  6. When disassemble the microducts, please make sure the pressure is 0.



Specifications



Blowing Pressure

Between temperatures of -10°C and +40°C, all listed connector sizes can be used for blowing operations at pressures up to 16bar.

Between +40°C and +65°C, blowing pressures for 10mm and larger should not exceed 10bar.
Gas Tightness

Leakage at 8 bar gas pressure: 1ml/minute approx.

Leakage at 0.7 bar gas pressure: 0.01ml/minute approx.
Water Ingress The connectors shall seal against a 6m head of water
Insertion force 50N max (5kg)

Retention force

(collet not held in)

25N min (3mm m/d) 125N min (8mm m/d)

55N min (5mm m/d) 125N min (10mm m/d)



Order Information



Specification Duct OD/ID (mm)

THR Bore

(mm)
Duct A Duct B
Reducer Connector DI-RDL-5-3/2.1 5/3.5 3/2.1 3.5>2.1
Reducer Connector DI-RDL-5-4/2.1 5/2.1 4/2.1 2.1
Reducer Connector DI-RDL-5-4/2.8 5/3.5 4/2.8 3.5>2.8
Reducer Connector DI-RDL-7-3/2.1 7/5.5 3/2.1 5.5>2.1
Reducer Connector DI-RDL-7-4/2.1 7/4 4/2.1 4>2.1
Reducer Connector DI-RDL-7-4/2.8 7/5.5 4/2.8 5.5>2.8
Reducer Connector DI-RDL-7-5/3.5 7/3.5 5/3.5 3.5
Reducer Connector DI-RDL-7-5/2.1 7/3.5 5/2.1 3.5>2.1
Reducer Connector DI-RDL-7-5/3.5 7/5.5 5/3.5 5.5>3.5
Reducer Connector DI-RDL-8-7/3.5 8/4.4 7/3.5 4.4>3.5
Reducer Connector DI-RDL-8-3/2.1 8/4.7 3/2.1 4.7>2.1
Reducer Connector DI-RDL-8-5/3.5 8/4.4 5/3.5 4.4>3.5
Reducer Connector DI-RDL-8-7/5.5 8/5.5 7/5.5 5.5
Reducer Connector DI-RDL-8-7/3.5 8/4.4 7/3.5 4.4>3.5
Reducer Connector DI-RDL-8-7/3.5 8/5 7/3.5 5>3.5
Reducer Connector DI-RDL-8-3/2.1 8/6 3/2.1 6>2.1
Reducer Connector DI-RDL-8-5/3.5 8/6 5/3.5 6>3.5
Reducer Connector DI-RDL-8-7/3.5 8/6 7/3.5 6>3.5
Reducer Connector DI-RDL-8-7/4 8/6 7/4 6>4
Reducer Connector DI-RDL-8.5-5/3.5 8.5/6 5/3.5 6>3.5
Reducer Connector DI-RDL-8.5-8/6 8.5/6 8/6 6
Reducer Connector DI-RDL-10-8.5/6 10/8 8.5/6 8>6
Reducer Connector DI-RDL-10-7/3.5 10/8 7/3.5 8>3.5
Reducer Connector DI-RDL-10-7/4 10/6 7/4 6>4
Reducer Connector DI-RDL-10-5/3.5 10/8 5/3.5 8>3.5
Reducer Connector DI-RDL-10-7/5.5 10/8 7/5.5 8>5.5
Reducer Connector DI-RDL-10-8/6 10/8 8/6 8>6
Reducer Connector DI-RDL-10-8.5/6 10/6 8.5/6 6
Reducer Connector DI-RDL-12-5/3.5 12/10 5/3.5 10>3.5
Reducer Connector DI-RDL-12-7/3.5 12/10 7/3.5 10>3.5
Reducer Connector DI-RDL-12-7/5.5 12/10 7/5.5 10>5.5
Reducer Connector DI-RDL-12-8/4.4 12/8 8/4.4 8>4.4
Reducer Connector DI-RDL-12-8/5 12/10 8/5 10>5
Reducer Connector DI-RDL-12-8/6 12/10 8/6 10>6
Reducer Connector DI-RDL-12-10/8 12/10 10/8 10>8
Reducer Connector DI-RDL-12-10/6 12/8 10/6 8>6
Reducer Connector DI-RDL-12-8/5 12/10 8/5 10>5
Reducer Connector DI-RDL-12-8/6 12/10 8/6 10>6
Reducer Connector DI-RDL-12-10/8 12/8 10/8 8
Reducer Connector DI-RDL-12.7-8/6 12.7/10 8/6 10>6
Reducer Connector DI-RDL-12.7-8.5/6 12.7/10 8.5/6 10>6
Reducer Connector DI-RDL-12.7-10/8 12.7/10 10/8 10>8
Reducer Connector DI-RDL-12.7-12/10 12.7/10 12/10 10
Reducer Connector DI-RDL-14-7/5.5 14/12 7/5.5 12>5.5
Reducer Connector DI-RDL-14-7/3.5 14/12 7/3.5 12>3.5
Reducer Connector DI-RDL-14-8.5/6 14/10 8.5/6 10>6
Reducer Connector DI-RDL-14-8/4 14/10 8/4 10>4
Reducer Connector DI-RDL-14-12/8 14/10 12/8 10>8
Reducer Connector DI-RDL-14-10/8 14/12 10/8 12>8
Reducer Connector DI-RDL-14-12/10 14/12 12/10 12>10
Reducer Connector DI-RDL-14-12/10 14/10 12/10 10
Reducer Connector DI-RDL-14-12.7/10 14/12 12.7/10 12>10
Reducer Connector DI-RDL-16-10/8 16/13 10/8 13>8
Reducer Connector DI-RDL-14-8/4 14/10 8/4 10>4
Reducer Connector DI-RDL-14-7/3.5 14/10 7/3.5 10>3.5
Reducer Connector DI-RDL-16-12/10 16/12 12/10 12>10
Reducer Connector DI-RDL-16-12/8 16/12 12/8 12>8
Reducer Connector DI-RDL-16-12.7/10 16/12 12.7/10 12>10
Reducer Connector DI-RDL-16-14/10 16/10 14/10 10
Reducer Connector DI-RDL-16-14/10 16/12 14/10 12>10
Reducer Connector DI-RDL-18-14/10 18/14 14/10 14>10
Reducer Connector DI-RDL-18-16/12 18/16 16/12 16>12
Reducer Connector DI-RDL-22-18/14 22/18 18/14 18>14
Reducer Connector DI-RDL-20-16/12 20/16 16/12 16>12
Reducer Connector DI-RDL-20-14/10 20/16 14/10 16>10
Reducer Connector DI-RDL-20-12/10 20/16 12/10 16>10
Reducer Connector DI-RDL-22-20/16 22/16 20/16 16
