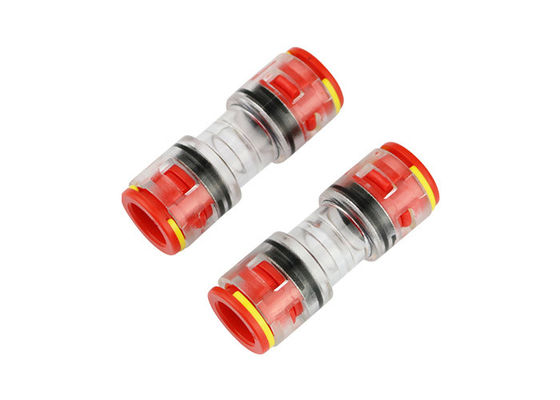

Straight Micro duct Connectors with Locking Clips in Blown Fibre Optic Micro Ducted Network Solutions
| Place of Origin | Shanghai |
|---|---|
| Brand Name | Yogel |
| Certification | RoSH |
| Model Number | DI-SCL-7/5.5-RT |
| Minimum Order Quantity | 1 |
| Price | USD 0.35 to 0.99 per Set |
| Packaging Details | Inner PE bags, Outer Cartoon: 59x33x22cm |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 200,000 Sets per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Body | Polycarbonate | Seal / O-Rings | Nitrile Rubber (NBR) |
|---|---|---|---|
| Washer | Polyacetal | Internal Teeth / Grip Ring / Lock Claws | Stainless-Steel |
| Collar | Polyacetal | Collet | Polyacetal |
Product Description
Microduct Connectors & Sealing
Direct Install – Blown Fiber Push-fit
Straight Connectors with Locking Clips
Description
Details of the common push-fit straight connector. In sizes to match the microduct (m/d) diameters, the fittings are pushed onto a clean-cut m/d end and make a seal with internal O-rings. If the m/d is pulled away from the connector, internal teeth, and a tapered body cause the tube to be gripped tighter. Removal of the m/d is achieved by pressing the collet inwards.
Features
* Provides high-tensile, pressure-tight connection for microducts with identical outer diameters
* Base body made of impact-resistant material (proven with spade test followed by pressure test)
* Transparent base body for visual inspection of the connection
* Clamping teeth made of corrosion-free spring steel (tested according to EN 61386‑24 or EN 61386‑1)
* Pre-fitted locking clips prevent accidental disengage when installed
* Suitable for direct install below ground and blow-in pressures up to 15 bar
* Internal pressure test according to DIN 16874 (170 h/80 °C/4.0 MPa)
* Can be removed and reused if necessary
* For suitable for in-house use, flame-retardant styles are available according to EN 61386-22 and halogen-free
Structure & Material
| No. | Item | Material & Description |
| 1 | Body | Polycarbonate |
| 2 | Seal / O-Rings | Nitrile Rubber (NBR) |
| 3 | Washer | Polyacetal |
| 4 | Internal Teeth / Grip Ring / Lock Claws | Stainless-Steel |
| 5 | Collar | Polyacetal |
| 6 | Collet | Polyacetal |
| OD | Outer Diameter | |
| ID | Inner Diameter | |
| DI | Direct Install | |
| DB | Direct Bury |
Notes:
1. Please confirm the microduct outer diameter whether has damaged or scratches, connection face must be clean.
2. Please confirm the microduct outer diameter nominal tolerances meets土0.1mm.
3. Please make sure the connection microduct end face is cut into the rectangular plane.
4. Please confirm the microduct should be through the sealing ring, and have been pushed to the end of the joint until it couldn't go far again.
5. After connecting the microducts, must check whether the duct can pull, then put into use.
6. When disassembling the microducts, please make sure the pressure is 0.
Specifications
| Blowing Pressure |
Between temperatures of -10°C and +40°C, all listed connector sizes can be used for blowing operations at pressures up to 16bar. Between +40°C and +65°C, blowing pressures for 10mm and larger should not exceed 10bar. |
| Gas Tightness |
Leakage at 8 bar gas pressure: 1ml/minute approx. Leakage at 0.7 bar gas pressure: 0.01ml/minute approx. |
| Water Ingress | The connectors shall seal against a 6m head of water |
| Insertion force | 50N max (5kg) |
|
Retention force (collet not held in) |
25N min (3mm m/d) 125N min (8mm m/d) 55N min (5mm m/d) 125N min (10mm m/d) |
Order Information
| Model No. | Description |
| DI-SCL-5/3.5-RT | Direct Install, Straight Connector with Locking Clip, 5/3.5mm Microduct OD/ID, Right Angle Footprint, Transparent Plastic Body |
| DI-SCL-7/4-RT | Direct Install, Straight Connector with Locking Clip, 7/4mm Microduct OD/ID, Right Angle Footprint, Transparent Plastic Body |
| DI-SCL-7/5.5-RT | Direct Install, Straight Connector with Locking Clip, 7/5.5mm Microduct OD/ID, Right Angle Footprint, Transparent Plastic Body |
| DI-SCL-8/6-RT | Direct Install, Straight Connector with Locking Clip, 8/6mm Microduct OD/ID, Right Angle Footprint, Transparent Plastic Body |
| DI-SCL-10/6-RT | Direct Install, Straight Connector with Locking Clip, 10/6mm Microduct OD/ID, Right Angle Footprint, Transparent Plastic Body |
| DI-SCL-10/8-RT | Direct Install, Straight Connector with Locking Clip, 10/8mm Microduct OD/ID, Right Angle Footprint, Transparent Plastic Body |
| DI-SCL-12/8-RT | Direct Install, Straight Connector with Locking Clip, 12/8mm Microduct OD/ID, Right Angle Footprint, Transparent Plastic Body |
| DI-SCL-12/10-RT | Direct Install, Straight Connector with Locking Clip, 12/10mm Microduct OD/ID, Right Angle Footprint, Transparent Plastic Body |
| DI-SCL-14/10-RT | Direct Install, Straight Connector with Locking Clip, 14/10mm Microduct OD/ID, Right Angle Footprint, Transparent Plastic Body |
| DI-SCL-14/12-RT | Direct Install, Straight Connector with Locking Clip, 14/12mm Microduct OD/ID, Right Angle Footprint, Transparent Plastic Body |
| DI-SCL-16/12-RT | Direct Install, Straight Connector with Locking Clip, 16/12mm Microduct OD/ID, Right Angle Footprint, Transparent Plastic Body |
*Note: Different Colors, FR styles or Oblique Angle Footprints are available.
