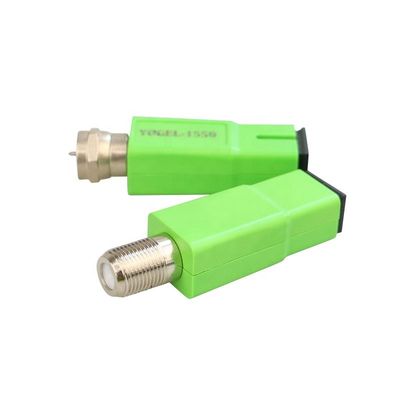

Green Passive FTTH CATV Mini Optical Fiber RF Receiver Node

Place of Origin	Shanghai
Brand Name	Yogel
Certification	ISO9001
Model Number	YG-Mini Node
Minimum Order Quantity	1 unit
Price	1.2USD-2USD
Packaging Details	with standard carton box or can be OEM by the clients
Delivery Time	3-5 Work days
Payment Terms	L/C, T/T, Western Union

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Application	CATV	Product Name	YG-Mini Node
Certification	ISO9001,RoHS

Leave a Message

Product Description

Green Passive FTTH CATV Mini Optical Fiber RF Receiver Node

Passive mini optical receiver is a home-based optical receiver which caters for the ultimate development goal of the optical

fiber access and is suitable for the FTTH network optical fiberuser access terminal to realize the analog or digital signal access

to the home.

Features:

*Without power supply and consumption.

*High quality plastic case.

*Digital signal input -10dB, analog signal input -7dB.

*SC/APC or FC/APC.

*Output level> 68dBuv (pin=0dB).

Dimensions And Pin Type

Dimensions are in millimeters. All dimensions are ±0.5mm unless otherwise specified.

Specification:

Name	Passive mini optical receiver
Wavelength	1100~1600nm&1550nm
Input optical power	0dBm~-7dBm(Analogy Signal) & 0dB~-10dBm(Digital signal)
Return loss	>45dB
Optical connector	FC/APC&SC/APC FC/PC&SC/PC
Bandwidth	40~862MHz
Flatness	±0.75dB@40~862 MHz & 1006MHz
RF output port level	≥16dB@40~550 MHz ≥14dB@550~862&1006MHz
Output port level	>68dBuV(0dBm test)
CNR(note1)	≥51dB
CTB(note1)	≥65dB
CSO(note1)	≥62dB
Working temperature	-25℃ ~+ 45℃
Output port	1
RF output impedance	75Ω
