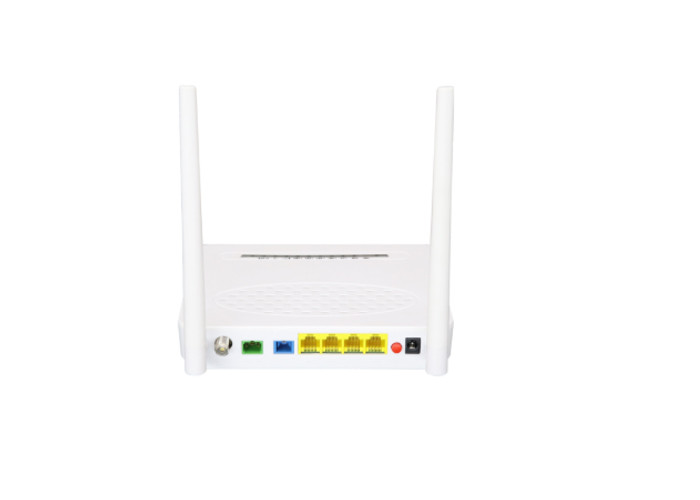

1.244Gbps Upstream Catv 4 Port Wifi Router Gpon Onu Unit

  • 1.244Gbps Upstream Catv 4 Port Wifi Router Gpon Onu Unit
  • 1.244Gbps Upstream Catv 4 Port Wifi Router Gpon Onu Unit
  • 1.244Gbps Upstream Catv 4 Port Wifi Router Gpon Onu Unit
  • 1.244Gbps Upstream Catv 4 Port Wifi Router Gpon Onu Unit
  • 1.244Gbps Upstream Catv 4 Port Wifi Router Gpon Onu Unit
Place of Origin Shanghai China
Brand Name Yogel or OEM
Certification ISO9000
Model Number GPON ONU 1GE+3FE+WIFI+CATV
Minimum Order Quantity 1
Price Negotiate
Packaging Details 20 pieces /carton box
Delivery Time 3-5 days after despoit
Payment Terms Western Union, MoneyGram, T/T, L/C
Supply Ability 10000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Wifi Onu Gpon Onu Catv 2 Port Wtih Catv Gepon Xpon Optical Network Unit WIFI Router FTTH Ont Family Gpon Onu Cat PON Port 1 GPON Optical Interface：SC/UPC
Rate Upstream：1.244Gbps Downstream：2.488Gbps Wavelength Tx 1310nm, Rx 1490nm
LAN 4*10/100/1000Mbps Wireless IEEE802.11b/g/n, 300Mbps, 2T2R, 2 External
Highlight

1.244Gbps Upstream Gpon Onu unit

,

Catv 2 port Gpon Onu unit

,

1.244Gbps Upstream wifi onu
Leave a Message
Product Description

wifi onu Gpon Onu Catv 4 port wtih catv Gepon Xpon Optical Network Unit WIFI Router FTTH Ont Family Gpon Onu Cat


1. Overview




It is designed for meeting the triple-play service needs of fixed network operators or cable operators, and widely used in FTTO (office), FTTD (desk), FTTH (home) broadband access and CATV, video surveillance and other requirements. It is based on mature GPON and Gigabit EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah and technical requirement of GPON/EPON Equipment from China Telecom. Dual mode ONU can automatically detect OLT and switch PON mode, it can be used as GPON or EPON.

It can also be applied to a wide temperature environment, and also has a firewall function.



2. Features


* Full compatible with ITU-T G.984
* Support the Ethernet interface rate, working mode and flows control
*Support packet filtering and anti-illegal message attack protection
* Support IGMP Snooping
*Compliant with 802.11 b/g/n wireless standard protocol

*Support OAM and TR069 for remote management
*Fully compatible with Huawei, Fiberhome, and ZTE OLT
*Support VLAN tagged label processing, traffic classification etc.
*Support DHCP Option60 reporting the location information of the Ethernet
interface


3. Hardware Parameter
Item Parameters

Specification







PON

 PON Port 1 GPON Optical Interface:SC/UPC
Rate

Upstream:1.244Gbps

downstream:2.488Gbps
Type BOSA
Wavelength Tx 1310nm, Rx 1490nm

Optical Output

Power



+0.5~+5dBm
Sensitivity -28dBm
Overload -8dBm





UNI



LAN

1*10/100/1000Mbps or

1*10/100/1000Mbps and 3*10/100Mbps Full / Half-Duplex, RJ45, Auto-MDI/MDI-X



Wireless

IEEE802.11b/g/n, 300Mbps,

2T2R, 2 External





Environmental Specifications

 Shell Plastic casing
Power External DC 12V/1A power supply adapte

Power

consumption

1GE+1FE+WIFI:<5W

2GE+WIFI: <6W
Dimensions 172mm(L)*130mm(W)*30mm(H)
Weight 0.3kg



4. Functions

GPON Feature

Compliant with ITU-T G.984 GPON standard
FEC (Forward Error Correction) in both upstream and downstream Dynamic bandwidth status report
802.1p mapper for upstream
QoS scheduling based on SP or WRR between GEM port and T- CONT
Downstream multicast GEM port and broadcast GEM port

Gateway Feature

WAN support Router and Bridge mode Router mode supports PPPoE/DHCP/ static IP WAN support Internet,IPTV,TR069
LAN supports DHCP and static IP Support NAT and NAPT
Support UPnP


OAM Feature


Standard OMCI compliant with ITU-T G.988
Compliant with TR-069 standard
Compliant with TR-098,TR-140
Remote software upgrade through



CATV Feature


Item                                                        Parameter
Wavelength                                            1550nm
Optical return loss                                 >45dB
Input optical power                               -18dBm～0dBm
RF output frequency                             47MHz~1000MHz
RF output level                                     78dBuV (@-12~-2dBm@85MHz)
CNR                                                      >41dB (@-10dBm@DS22 Channel)
CSO                                                      >60dBc (@-10dBm@DS22 Channel)
CTB                                                      >60dBc (@-10dBm@DS22 Channel)
Flatness                                                ±1dB
RF output return loss                           >16dB
RF impedance                                      75Ω
AGC function                                        Support
