SC LC FC ST 175*175*165mm Yogel Fiber Optic Cassette Cleaner
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Fiber Optic Cassette Cleaner | Function | Cleaning |
|---|---|---|---|
| Item | Optical Fiber Cleaning Tool Kit | Application | SC/ST/FC/LC/MU |
| Dimension | 175*175*165mm | Blade Life | 800 TIMES |
| Highlight | 175*175*165mm fiber optic cassette cleaner,Yogel fiber optic cassette cleaner,Yogel fiber optic cleaning tool |
||
Product Description

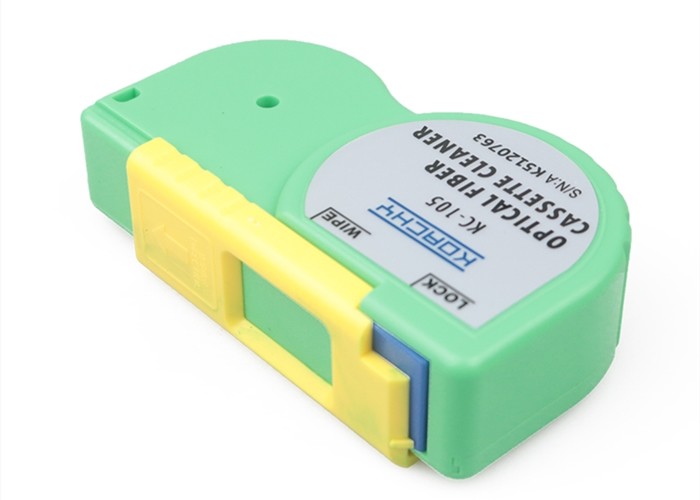

SC/LC/FC/ST Connector Optical Fiber Ferrule End Face Fiber Optic Cassette Cleaner
Description
Fiber Optic Cassette Cleaner It is designed to specially work well with the female connectors. This instrument cleans the ferrule end faces removing dust, oil,and other debris without nicking or scratching the end face. The clean pen is specially designed to clean the APC and UPCconnector. The operation of cleaning pen is easy and exact. Otherwise, it will keep the low cost for a long time. Its working life is more than 800 times.
Features:
Suitable for cleaning tasks in factories and field applications
Environmentally friendly
Achieve high quality cleaning without alcohol or other solvents.
The cleaning tape is replaceable thus reducing the long term costs
This is an ideal tool for use when the connector face is available to you for cleaning
Specifically designed to clean ST, SC, FC, SMA D-4, DIN, and Diamond connector faces
Connector cleaned: SC, SC2, FC, ST,DIN, D4 MU, LC, MT
More than 500 times/cartridge
Environment Operation Temperature -20°C to 50°C
Humidity 20% to 80%R.H.
Preservation Temperature -20°C to 60°C
Replacement reel
Specifications
|
Product name
|
Fiber cleaner
|
|
Function/Handling type
|
One-Push
|
|
Classification Color
|
KOC-250/KOC-125
|
|
No. of Cleanings
|
>800 times
|
|
Applicable Fiber Optic Connector & Adaptor
|
SC,FC,ST / LC,MU
|
|
Remarks
|
Released in 2011.Apr
|
|
Dimensions(mm)
(Guide Cap dimensions and prongs are not included.)
|
W175xH175xL165
|
|
Cleaning Method
|
Cleaning Method
|
Application:
1. Fiber network panels and assemblies
2. Outdoor FTTX applications
3. Cable assembly production facility
4. Testing laboratories, Server, switches, routers and OADMS with SC interface
