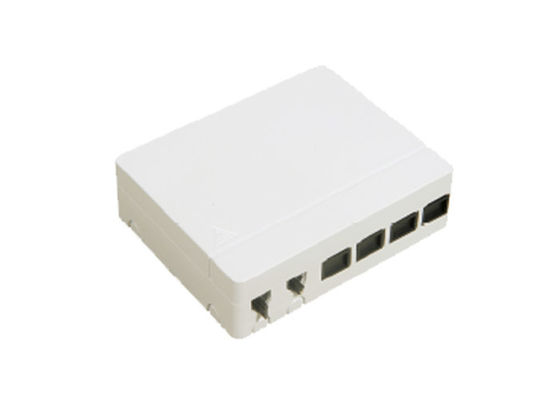

FTTB 4 Port Fiber Termination Outlet Box
| Place of Origin | Shanghai |
|---|---|
| Brand Name | Yogel |
| Certification | ISO9001,RoHS |
| Model Number | FTB-DXB2-S |
| Minimum Order Quantity | 1 unit |
| Price | 3USD-6USD |
| Packaging Details | 15pieces/carton, Optical Fiber Product can be OEM/ODM We can design some special packaging according to customer's requirement. |
| Delivery Time | 3-5 work days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 5000 pieces per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Certification | ISO9001,RoHS | Material | PC+ABS |
|---|---|---|---|
| Application | FTTH FTTB FTTX Network | Product Name | Fiber Optic Termination Box |
| Color | White | Warranty | 3 Years |
| Port /count | 4 Ports | ||
| Highlight | FTTB 4 port fiber termination box,FTTB indoor fiber termination box,FTTB ftb fiber termination box |
||
Product Description
Indoor Wall mounting 4 core Fiber Optic Distribution Box
support uncut mid-span
Fiber Outlets
Description
FTB-DXB2-S fiber termination box (fiber outlet) is able to hold up to 4 subscribers. It is used as a termination point for the drop cable to connect with patch cable in FTTH indoor application and also allows for easy demarcation inside the premise and cable management for incoming feeder cable. It integrates fiber splicing, termination, storage and cable connection in one solid protection box.
The Fiber Outlet can accommodate 4 entrance points for 3mm cable and up to 4 output SC adapter ports. The splice cassette is hinged and easily removable for non-splicing applications. This small indoor enclosure provides both bends limiting protection and a secure termination point to connect the entrance fiber to the included equipment jumper.
Features
- Snap-on cover for duct-free protection, dust-proof design with IP-45 Protection level
- Integrated with splice cassette and cable management rods, supports industry-standard SC adapters
- Manage fibers in a reasonable fiber radius condition
- Easy installation and maintenance, accommodates 4 adapter ports to access, and four cable entrance points to extend the capacity
- Hinged and detachable splice tray, suitable for the fusion splice or mechanical splice, Cables can also be connected without splicing
- Embedded type surface, easy for installation and removal
Specifications
| Model No. | FTB-DXB2-S |
| Dimension (L x W x H) | 3.9 x 3.2 x 1.25 inches (100 x 80 x 32 mm) |
| Installation | Wall mounting (Indoor) |
| Color | White |
| Material | ABS |
| Cable Entries | Supporting Uncut Mid-span |
| Max. Cable Diameter | Max. Input = 2x5mm, FTTH drop cable |
| Configuration / Adapter Style Receptacle | 4pcs SC or 4pcs Duplex LC adapter & 1x4 mini PLC |
| Operating Temperature | -20°C to 60°C |
| Packing Information |
GW.: 9.55KG Qty.: 100pcs MEAS.: 450x230x320mm |
Accessories (Optional)
| Model No. | Description |
| ADT-SC-SX-Y07-BL | SC Adapter, Simplex, Flanged, Metal Clip, One-piece type, Blue |
| ADT-SC-SX-Y07-GR | SC Adapter, Simplex, Flanged, Metal Clip, One-piece type, Green |
| ADT-SC-SX-Y07-BG | SC Adapter, Simplex, Flanged, Metal Clip, One-piece type, Beige |
| ADT-SC-SX-Y07-AQ | SC Adapter, Simplex, Flanged, Metal Clip, One-piece type, Aqua |
| ADT-SC-SX-Y07-VT | SC Adapter, Simplex, Flanged, Metal Clip, One-piece type, Violet |
| ADT-LC-DX-T11-BL | LC Adapter, Duplex, SC Footprint, Flanged, Slots, Metal Clip, One-piece type, Blue |
| ADT-LC-DX-T11-GR | LC Adapter, Duplex, SC Footprint, Flanged, Slots, Metal Clip, One-piece type, Green |
| ADT-LC-DX-T11-BG | LC Adapter, Duplex, SC Footprint, Flanged, Slots, Metal Clip, One-piece type, Beige |
| ADT-LC-DX-T11-AQ | LC Adapter, Duplex, SC Footprint, Flanged, Slots, Metal Clip, One-piece type, Aqua |
| ADT-LC-DX-T11-VT | LC Adapter, Duplex, SC Footprint, Flanged, Slots, Metal Clip, One-piece type, Violet |
| ASC-NC-LJX-004-DA2-0100 |
SC/APC-NC, LSZH, 0.9mm, 4 Color (Blue, Orange, Green, Brown), G.657A2, 1 Meter, Color-coded 900μm Pigtail Packs |
| USC-NC-LJX-004-DA2-0100 |
SC/UPC-NC, LSZH, 0.9mm, 4 Color (Blue, Orange, Green, Brown), G.657A2, 1 Meter, Color-coded 900μm Pigtail Packs |
| PLC-P-104-ASC-CJ-DA2-10-MINI | 1x4, PLC Mini Type Splitter, Color-coded Tube, SM-G.657A2, Input: SC/APC, 0.9mm, 1 Meter, Output: SC/APC, 0.9mm, 1 Meter |
| PLC-P-104-USC-CJ-DA2-10-MINI | 1x4, PLC Mini Type Splitter, Color-coded Tube, SM-G.657A2, Input: SC/UPC, 0.9mm, 1 Meter, Output: SC/UPC, 0.9mm, 1 Meter |
Samples
Description: 4-core Fiber Outlet (FTB-DXB2-S) Full-loaded with
1. SC/UPC-NC, LSZH, 0.9mm, 4 Color (Blue, Orange, Green, Brown), G.657A2, 1 Meter, Color-coded 900μm Pigtail Packs (USC-NC-LJX-004-DA2-0100)
2. 4 pieces SC Adapter, Simplex, Flanged, Metal Clip, One-piece type, Blue (ADT-SC-SX-Y07-BL)
FAQ
1. Are you manufacturer?
Yes!
2. How about the quality?
Our company's products are through the quality of the test, the indicators have reached the international standard.
3. Which currencies are supported?
Dollar, euro, RMB
4.What are the after-sales service?
In the face of service and quality problems,can be settled through friendly consultations,
as far as possible in accordance with customer needs, meet customer needs, meet product quality problems, we can free replacement of new products!
5. How does your factory do the quality control ?
Every product will be fully assembled and carefully tested before packing and shipping.
