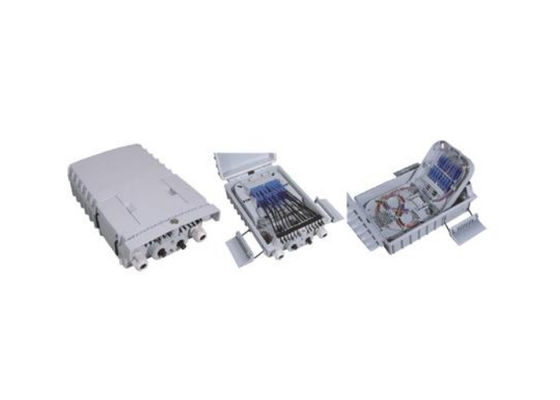

Pole Mounting 16F FTTH Fiber Optic Termination Box
Product Details
Product Name | Fiber Distribution Box | Item Number | FDSC-WG/ADT-16M |
---|---|---|---|
Dimension(LxWxH) | 274x175x82mm | Installation | Wall/Pole Mounting(Outdoor & Indoor) |
Cable Entries | Supporting Uncut Mid-span | Configuration | 16pcs SC Or 16pcs Duplex LC Adapter & 1x16 Mini PLC |
Color | Gray | Cores | 16F |
Material | Pc+abs | Protection Level | IP65 |
High Light | 16F FTTH Fiber Optic Termination Box,Pole mounting FTTH Fiber Optic Termination Box,Yogel fibre optic distribution box |
Product Description
Description
Fiber access termination closure is able to hold up to 16subscribers and 96splicing points as closure. it is used as a splicing closure and a termination point for the feeder cable to connect with drop cable in FTTX network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
Features
* Water-proof design with IP-65 Protection Level.
* Integrated with flap-up splice cassette and adaptor holder
* All stainless metal plate and anti-rusting bolts, nuts
* Fiber bend radius control more than 40mm
* Suitable for the fusion splicer or mechanical splice
* 3Pcs of 1*8 Splitter can be installed as an option
* Mechanical sealing structure and mid-span cable entry.
* 24 ports cable entrance for drop cable
* 24 adapter for drop cable patching
Applications
* Wall mounting and pole mounting installation
* FTTH pre-installation and filed installation
* 2*3mm indoor FTTH drop cable and outdoor figure-8FTTH self-supporting drop cable
Standard Accessories
Splice cassette and cable management tool, installation nuts and bolts, protection sleeves hose clamp, cable tube, wrench, cover, holder, rubber seal for cable entrance
Optional Accessories
Pole ring
Configuration
Material
|
Size
|
Max Capacity
|
Nos of Adaptor |
Weight
|
Color
|
|
PC+ABS |
A*B*C(mm)
274*175*82 |
Splice 16 Fibers (1trays, 16fiber/tray) |
2pc of 1*8 PLC Splitter |
16pc of SC |
1.85kg |
