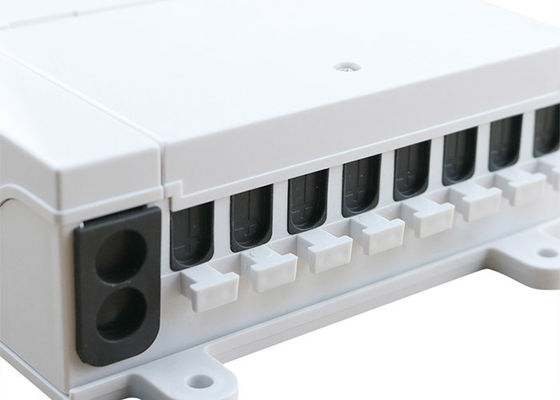

Wall Mounting 035KG FTTB 8 Port Fiber Termination Box
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | PC ABS | Application | FTTH FTTB FTTX Network |
|---|---|---|---|
| Product Name | 4 8 12 24 Core Fiber Distribution Box | Color | Gray,White,black |
| Outlet Ports | 8 | Capacity | 8 Fibers |
| Product Weight | 035KG | Qty Per Carton | 60 Pcs |
| Highlight | FTTB 8 Port Fiber Termination Box,035KG 8 Port Fiber Termination Box,035KG fiber termination box wall mount |
||
Product Description
Indoor/Outdoor 8 Core Fiber Optic Distribution Box With Wall Mounting Accessories
Description:
This product integrates fusing, splitting and wiring. It can realize direct fusing and divergence of optical cable. It is suitable for terminal access of client and wiring connection of optical communication equipment. Through the adapter of box, optical signal is drawn out by optical hopping wire to realize optical wiring function. It can also be fused with the household optical cable after the splitting wire is opened and coiled to realize the direct function of the optical cable and meet the needs of the traditional transmission network engineering.
Product characteristics:
A, the product is made of high quality impact resistant plastic, and has a standard user interface.
B, which can accommodate 1x4 or 1x8 PLC splitter.
C, has the function of anti ultraviolet, impact and waterproof.
D, hanging wall or holding pole installation;
E. Unique flip core, larger fiber space, more obvious weld zone and wiring zone, reduce the line crossing.
Technical indicators:
Optical fiber curvature radius: 40mm
Additional loss of fiber optic disc: less than 0.01dB
Temperature range: - 40 C ~ + 70 C
• lateral pressure resistance: greater than 2000N / 10 cm
Shock resistance: greater than or equal to 20N.m
Protection level: IP65
Specification:
| Product model: | FDMS-WS/ADT-8B | ||
|
Szie(mm) Long×Width×Height |
192*133*47 |
Outer Packing(mm) Long×Width×Height |
480*470*520 |
| Material: | High quality ABS/PC | Net weight(Kg) | 0.3 |
| Suitable for optical cable diameter(mm) | ≤F12 | Outer packing weight(Kg) | 19.5 |
| Fiber optic cable inlet / outlet number: | 4/8 | Outer package quantity: | 60 |
| Maximum fusion core number: | 8(core) | Outer package volume(M3 ) | 0.117 |
Application :
FTTH access network.
Telecommunication Networks
CATV Networks
Data communications Networks
Local Area Networks

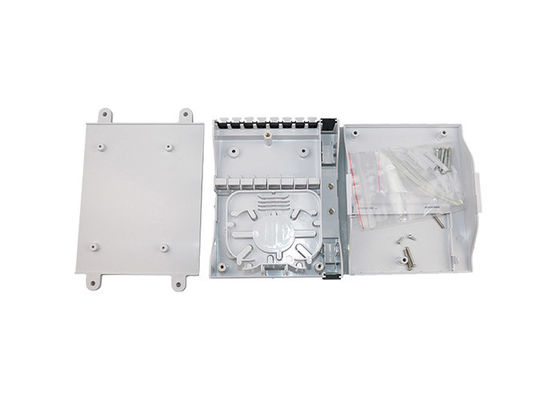

Product Show:
FAQ :
1.Do you provide free samples?
yes, we can supply some free samples , the buyer should pay the shipping cost.
2. Can we become your distributor or agency in our area?
yes, it is possible if we do not have an agency or distributor in your area. The best way to start the business and approve your good intentions through several regular orders over a period. we will support very good products to our distributor including samples, price and other supports. please contact with our sales manager for more details.
3.Can you supply OEM products under our brand?
yes ,we are manufacturer ,but we can accept OEM service with OEM package ,you just need to send us your detailed requirements.
4. Are you manufacturer or trading company?
A: We are manufacturer, welcome to visit our factory.
5.What is your delivery time?
A: It depending on the order quantity, normally the bulk order delivery time 5-10days.
6, How to proceed an order?
A: First let us know your requirements or application.
Secondly we quote according to your requirements or our suggestions.
Thirdly customers confirm the samples and places deposit for formal order.
Fourthly we arrange the production.
