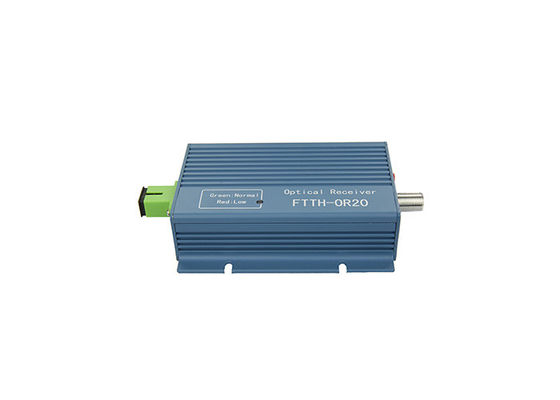

ISO9000 TV FTTH 1560nm Mini Optical Node
| Place of Origin | Shanghai China |
|---|---|
| Brand Name | Yogel or OEM |
| Certification | ISO9000 ,ROHS,CE |
| Model Number | YG-AHN03-10F |
| Minimum Order Quantity | 1 |
| Price | Negotiate |
| Packaging Details | 1 piece/carton box |
| Delivery Time | 3-5 days after despoit |
| Payment Terms | Western Union, MoneyGram, T/T, L/C |
| Supply Ability | 10000 pcs/ month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 1550nm CATV Receiver Micro Fiber Optical Node Active AGC Cable TV FTTH Optical Receiver Mini Optic Node | CATV Working Wavelength | 1540~1560 |
|---|---|---|---|
| Pass Wavelength | 1310,1490 | AGC Control Range | 0~-9 |
| Output Level | >82dBUV | RF Output Level | ≥80 |
| Receiving Power | +2~-10 Analog TV | Receiving Power | +2~-18 Digital TV |
| Highlight | 1560nm Mini Optical node,ISO9000 Mini Optical node,1560nm catv optical receiver |
||
Product Description
1550nm CATV receiver micro fiber optical node Active AGC Cable TV FTTH Optical Receiver Mini Optic Node
1. Product Description
AGC Control range 1100 to 1600nm optical receiver WDM OR20 for Digital TV is home-based optical receiver catering to the ultimate goal of development of optical access and suitable for FTTH(fiber to the home) optical fiber network users access to the end. Analog or digital signal to home can be used together with the ONU or EOC achieving triple play.
2. Product feature
1. Low noise, high power, low power consumption and high cost performance
2. Excellent flatness in the bandwidth
3. Output attenuation control
4. With CWDM built-in, suitable for single fiber three wave system, RFTV working wavelength 1550nm and pass through wavelength 1310/1490nm. Can easily connect the ONU for EPON and GPON.
3. Technical Parameters
| Item | Unit | Paramter | Supplement |
| CATV working wavelength | 1540~1560 | ||
| Pass wavelength | nm | 1310,1490 | |
|
Receiving power |
(dBm) |
+2~-10 | Analog TV |
| +2~-18 | Digital TV | ||
| Return loss | (dB) | ≥45 | |
| Work bandwidth | MHz | 47~862/1000 | |
| Flatness | dB | ±0.75 | |
|
RF output level |
(dBuv) |
≥80 | Single output Pin:-9~0dBm |
| ≥76 | Dual outputs Pin:-9~0dBm | ||
| AGC control range | (dBm) | 0~-9 |
| AGC character | dB | ≤±0.5 | Pin:-9~+0dBm |
| Output level control | (dB) | 0-20 | MGC |
| Output return loss | (dB) | ≥14 | 47-862MHz |
| Output impedance | (Ω) | 75 | |
| Number of output port | ea | single output / dual outputs | |
| CNR | dB | ≥51 | Pin=-2dBm |
| CTB | dB | ≥61 | Pin=-2dBm |
| CSO | dB | ≥60 | Pin=-2dBm |
| Power supply | V | +8VDC | |
| Power consume | W | ≤3 | +8VDC,250mA |
| Work temperature | (℃) | -20~+60 | |
| Size | mm | 79*98*25.5 | (W)*(D)*(H) |
4.Application
1. Indoor Mini FTTH Optical Receiver/Optical Node is a household type receiver which meets to optical fiber to home for
digital or analog signal come true three network integration combined by ONU and EOC.
2. It adopts low optical power detector, GaAs and optical AGC control technique which meet the demands of CATV receiving.
A variety of functional products is slightly different in the application. it has AGC function and AGC cancustomize,
output level keeps unchanged which make the debugging very convenient.
3. FTTH optical terminal with convenient installation and debugging is an ideal product to build FTTH CATV network.
