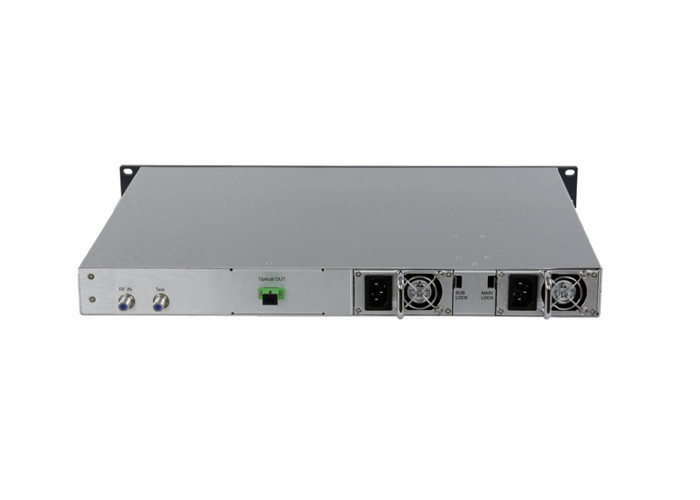

1550nm External Modulation 3dB CATV Optical Transmitter

  • 1550nm External Modulation 3dB CATV Optical Transmitter
  • 1550nm External Modulation 3dB CATV Optical Transmitter
Place of Origin Shanghai
Brand Name Yogel
Certification ISO9001
Model Number YG-1550EMTX Series
Minimum Order Quantity 1pcs
Packaging Details Carton
Delivery Time 3-7days
Payment Terms L/C, , T/T, Western Union
Supply Ability 5000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 1550nm Direct Modulation Optical Transmitter Size 482*357*44mm (L*W*H)
Output Optical Power 3dB To 10dB Working Bandwidth 47~862MHz (1000MHz Optional)
Wavelength 1550±15nm Optical Connector SC/APC Or FC/APC
Power Supply 90~265Vac Or 48Vdc RF Input Level 75~90dBuV
No. Of Fiber 1 Warranty 1 Year
Highlight

3dB CATV Optical Transmitter

,

3dB 1550nm Optical Transmitter

,

3dB catv fiber optic transmitter
Leave a Message
Product Description
Features

*Externally modulated technology for optical transmitter, no laser chirp, low dispersion distortion, high extinction ratio, with  excellent characteristic within 47~1082MHz in-band.
* Built-in perfect and automatic monitoring circuit of microcomputer can realize real-time accurate monitor status of optical output power
and extend the service life of the laser.
* Plug-in dual power, 48V/110V/220V optional.
* RF gain of AGC/MGC mode is optional and OMI can be optimized at spot.
* Excellent SBS Suppression circuit, ±0.05nm stepping adjustable in the range of threshold (13-18dBm) is applied in different network.
* Perfect RS232 communication interface and SNMP network management realize backup and maintain which help customers to repair.

Standard Configruration
* Two power supply modules
* With SNMP
* RF input port: Inch screw thread (British system), Optical output port: SC/APC connecotr
* Package Material: Cartoon
* Package Information:
                                   Package Information: 1U Volume(L*W*D): 625*625*160mm Weight: 10.0KG

Ordering Information

* Power Supply: 220V, 110V, 48V & EURO, USA, CHN standard etc. (optional)
* Optical Connector: SC/APC, FC/APC, LC/APC, etc. (optional)
* RF input port: Metric system, British system (optional)
* How many output ports& output optical power of each port (See below)

Ordering Guider

Name
Model No.
Type
X*xxdBm
Inventory

YG-1550EMTX-1x3
Simplex Modulator
1*3dBm
 ●

YG-1550EMTX-1x5
Simplex Modulator
1*5dBm
 ●

YG-1550EMTX-1x7
Simplex Modulator
1*7dBm
 ●

YG-1550EMTX-1x9
Simplex Modulator
1*9dBm
 ●

YG-1550EMTX-2x5
Duplex Modulator
2*5dBm
 ●

YG-1550EMTX-2x6
Duplex Modulator
2*6dBm
 ●

YG-1550EMTX-2x7
Duplex Modulator
2*7dBm
 ●

YG-1550EMTX-2x9
Duplex Modulator
2*9dBm
 ●

YG-1550EMTX-2x10
Duplex Modulator
2*10dBm
 ●
