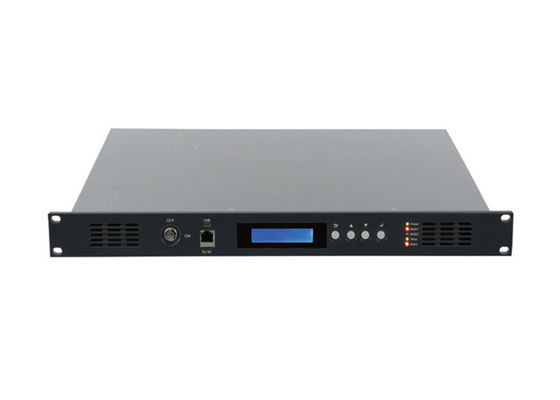

862MHz 1550nm 5dBm CATV Optical Transmitter
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 1550nm Direct Modulation Optical Transmitter | Size | 482*357*44mm (L*W*H) |
|---|---|---|---|
| Output Optical Power | 3dB To 10dB | Working Bandwidth | 47~862MHz (1000MHz Optional) |
| Wavelength | 1550±15nm | Optical Connector | SC/APC Or FC/APC |
| Power Supply | 90~265Vac Or 48Vdc | RF Input Level | 75~90dBuV |
| No. Of Fiber | 1 | Warranty | 1 Year |
| Highlight | 5dBm CATV Optical Transmitter,862MHz CATV Optical Transmitter,5dBm 1550nm Optical Transmitter |
||
Product Description
CATV Optical Equipments Fiber Optic 1550nm Direct Modulation Optical Transmitter
Features
* With two kinds of structure optional: Optical output port in front panel or Optical output port in back Panel, 19”1U Rack, advanced Aluminum Shell.
* Working Bandwidth:47~862MHz (1000MHz optional).
* 1310nm optical transmitter (2-18mw) adopt Fujitsu laser from Japan, while (20-30mw) adopt ORTEL laser from USA.
* Stable temperature Circuit (ATC) and Optical output power circuit (APC) can make sure best working status of laser.
* Working status indicator in front panel and RF testing port in back panel.
Standard Configruration
* Single power supply module
* With SNMP
* RF input port: Inch screw thread (British system), Optical output port: SC/APC connector
* Package Material: Cartoon
* Package Information:
1U Volume(L*W*H): 595*490*120mm Weight: 4.50KG 1 pieces/cartoon
1U Volume(L*W*H): 595*490*240mm Weight: 9.00KG 2 pieces/cartoon
Ordering Information
* Power Supply: 220V, 110V, 48V & EURO, USA, CHN standard etc. (optional)
* Optical Connector: SC/APC, FC/APC, LC/APC, etc. (optional)
* RF input port: Metric system, British system (optional)
* How many output ports& output optical power of each port (See below)
Ordering Guider
|
Name
|
Model No.
|
Output Optical Power
|
Max≤25KM
|
Max≤35KM
|
|
YG-1550DMTX-3-25/35
|
3dBm
|
● | ● | |
|
YG-1550DMTX-5-25/35
|
5dBm
|
● | ● | |
|
YG-1550DMTX-7-25/35
|
7dBm
|
● | ● | |
|
YG-1550DMTX-9-25/35
|
9dBm
|
● | ● | |
|
YG-1550DMTX-10-25/35
|
10dBm
|
● | ● | |
|
Add Additional Functionality
|
Add Power Supply Module
|
● | ||
