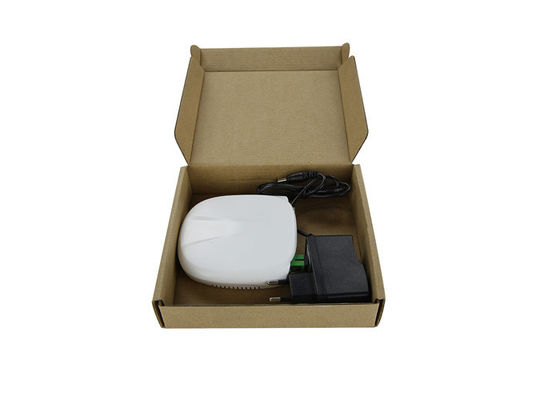

1100nm 22dBm Digital CATV Optical Node
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Fiber Optic Node | Item Number | YG-AHN02-1F |
|---|---|---|---|
| Power Supply | 220V, 110V& EURO, USA, CHN Standard Etc. (optional) | Wavelength | 1310nm |
| Optical Connector | SC/APC | RF Connector | Inch Screw Thread(British System) Or Metric System (optional) |
| Digital Signal Input | -18dBm | Analog Signal Input | -10dBm (Recommendation) |
| Output Level | 82dBuV. (AGC Range -9~0dBm) | ||
| Highlight | 22dBm Digital CATV Optical Node,1100nm CATV Optical Node,22dBm Digital ftth node |
||
Product Description
FTTH OR19 Series FTTH Optical Receiver No 1550nm Filter Optical node
Description
FTTH type optical receiver is a home-based optical receiver, catering to the ultimate goal of development of optical access for FTTH (FTTH) network, analog or digital signal can be realized. The equipment uses low-power optical detector, GaAs and optical control AGC technology to meet the needs of FTTH CATV reception. Variety of functional products in the applications slightly different.
FTTH type optical receiver OR19C with AGC, plug-in photocell. OR19W with WDM and AGC.
Feature
* Brushed aluminum shell with good heat dispersion.
* Adopts GaAs module as RF amplifying module, the optical receiving range for digital signal can reach -22dBm, and -10dBm for analog signal.
* AGC control range can be customized.
* Low consumption design and total consumption ≤4w, high reliable switching power supply with optical inspection circuit.
* SC/APC or FC/APC optical connector.
* Anti-high-frequency surge device to protect the GaAs amplifier tube.
* Multi-stage lightning protection devices (TVS transient suppression diodes), lightning protection system closely to ensure the safe operation of equipment.
* Realize the 8 v input port feeding way of power supply.
Technical parameter
| Technical Data | OR19 |
| Wavelength | 1100~1600nm&1550nm |
| Optical input power | 0dBm~-10dBm(analog) 0dBm~-22dBm(digital) |
| Return loss | >45dB |
| Optical connector | FC/APC&SC/APC FC/PC&SC/PC |
| Bandwidth | 40~862&1006MHz |
| Flatness | ±0.75dB@40~862MHz&1006MHz |
| Rf output reflection | ≥16dB@40~550MHz ≥ 14dB@550~860&1006MHz |
| Output level control | 0~18dB |
| Output level | >80dBuV(AGC: @-9~+0dBm) |
| Output port | 1 |
| Output impedance | 75 Ω |
| AGC range | -15dBm~-6dBm&-12dBm~-3dBm&-9dBm~0dBm |
| CNR | ≥51dB |
| CTB | ≥65dB |
| CSO | ≥62dB |
| Supply voltage | DC5V |
| Adaptor voltage | AC220V |
| Internal voltage | DC5V |
| Working temperature | -25℃~+45℃ |
| Consumption | <2W |
| Product dimension | 112*106*28mm |
| Carton weight | 1.26KG (10pcs) |
YG-OR19:RFTV wavelength 1260-1620nm
YG-OR19-W:built in 1310/1490nm filter,suitable for single fiber three wavelength system,RFTV wavelength 1550nm.
