LC APC/UPC MM OM2 1.5M ABS Box PLC Splitter
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Fiber Type | MM OM2 | Application | FTTH FTTB FTTX PON CATV |
|---|---|---|---|
| Product Name | PLC Splitter | Connector Type | LC |
| Color | Orange | Fiber Length | 1.5Meter Or Optional |
| Cable Diameter | 2.0mm | Warranty | 1 Years |
| Highlight | 1.5M ABS Box PLC Splitter,MM OM2 ABS Box PLC Splitter,MM OM2 fiber optic cable splitter |
||
Product Description

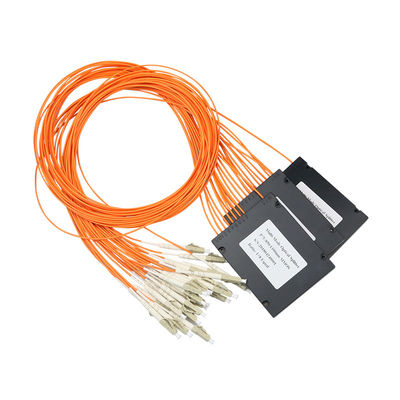

LC APC/UPC MM OM2 Fiber Optic splitter 1.5 M Orange Color ABS Box Splitter
Description
PLC splitter (Planar Lightwave Circuit Splitters) is a passive device that does not require extermal engery, as long as it has input light.PLC Splitter is key component in FTTx including splitting ratio from 1(2) x 2, to 1(2) x 64, highly stable across temperature and wavelength providing low insertion loss, low input polarization sensitivity, excellent uniformity, and low return loss. Avalible in Small Form Factor (Nickel Copper Alloy Encapsulated Case)(Blockless) , Module (ABS Box) and Cassette (Slot-In) type.. Also comes in various fan-out configurations, tight fiber to 3mm jacket, to with preterminated fiber optic connectors (SC/FC/ST/LC with APC/UPC).
Features
* Small size, highly integrated, can be installed in various of cross-connection cabinet directly, and do not need large space for it.
* Low insert loss, high uniformity.
* Low PDL.
* High return loss.
* Wide wavelength coverage.
* Anti-oxidant, anti-corrosion, excellant environment stability.
* Good mechanical property.
Applications
Optical Fiber Communication;
CATV;
Optical Transmission Backbone;
Optical Fiber Test and Measurement Systems;
Specification:
| Parameter | Unit | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | ||
| Fiber Type | / | G.657A, or customized | |||||||
| Operating Wavelength | nm | 1260~1650 | |||||||
| Insertion Loss | P | Max | dB | 4.0 | 7.0 | 10.4 | 13.5 | 16.8 | 20.5 |
| S | Max | dB | 4.2 | 7.3 | 10.6 | 13.8 | 17.1 | 20.8 | |
| PDL | Max | dB | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 | |
| Loss Uniformity | Max | dB | 0.6 | 0.8 | 1.0 | 1.4 | 1.6 | 2.0 | |
| Return Loss | Min | dB | 55(P Grade)/50(S Grade) | ||||||
| Directivity | Min | dB | 55 | ||||||
| Operating Temperature | ℃ | -40 ~ +85 | |||||||
| Storage Temperature | ℃ | -40 ~ +85 | |||||||
| Dimension(L×W×H) | mm | 40×4×4 | 50×7×4 | 60×12×4 | |||||
|
Remark: The above parameters do not include connectors; If connectors are added, the insertion loss will increase 0.2dB each. |
|||||||||
| Parameter | Unit | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 | ||
| Fiber Type | / | G.657A, or customized | |||||||
| Operating Wavelength | nm | 1260~1650 | |||||||
| Insertion Loss | P | Max | dB | 4.0 | 7.3 | 10.6 | 13.9 | 17.2 | 20.8 |
| S | Max | dB | 4.2 | 7.5 | 11.0 | 14.5 | 17.5 | 21.0 | |
| PDL | Max | dB | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 | |
| Loss Uniformity | Max | dB | 0.8 | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 | |
| Return Loss | Min | dB | 55(P Grade)/50(S Grade) | ||||||
| Directivity | Min | dB | 55 | ||||||
| Operating Temperature | ℃ | -40 ~ +85 | |||||||
| Storage Temperature | ℃ | -40 ~ +85 | |||||||
| Dimension(L×W×H) | mm | 40×4×4 | 50×7×4 | 60×12×4 | |||||
|
Remark: The above parameters do not include connectors; If connectors are added, the insertion loss will increase 0.2dB each. |
|||||||||
