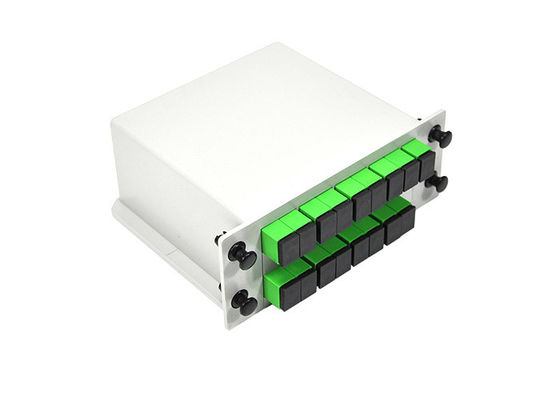

Optical Distribution Network (ODN) 1260 to 1625 nm All Wavelength Even Split Ratio LGX G.657A2 1/2x16 PLC Splitter
| Place of Origin | Shanghai |
|---|---|
| Brand Name | Yogel |
| Certification | ISO9001 |
| Model Number | 1x16 LGX SC APC |
| Minimum Order Quantity | 1Piece |
| Price | Negotiate |
| Packaging Details | 1 piece/plastic bag, 100pcs/inner box |
| Delivery Time | 3-7 work days after despoit |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 100000pcs /Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 1x16 LGX Type Fiber Optic Splitter | Application | FTTH FTTB FTTX Network |
|---|---|---|---|
| Connector | SC/APC | Capacity | 1x16 |
| Cable Diameter | 0.9mm | Fiber Type | ITU-T G.657A2 |
| Highlight | G657A2 1x16 Plc Splitter,G657A2 cassette plc splitter,G657A2 fbt optical splitter |
||
Product Description
1x16 Optical Fiber Low Insertion Loss
Planar Lightwave Circuit (PLC) Cassette SC/APC
Insertion Type Fiber Optic Splitters
Description
PLC Splitter means planar lightwave circuit splitter, which is based on planar light wave technology, widely used in FTTX, EPOM, BPON, GPON. We launched 1xN, 2XN PLC splitter with consistent performance, low optical Insertion loss, low polarization dependent Loss, high reliability and stability , superior environmental and mechanical characteristics, and fast installation. They also enable more effective monitoring and management of fiber optical networks. All wavelength (1260-1625nm) is not sensitive. And our products meet Telcordia 1209, 1221 standard , ROHS.
We have unique competitive advantages in our PLC product platform by leveraging our strong expertise in fiber array block fabrication, our partnership with foundry service providers, and our reliable packaging technologies. Our splitters are tested based on the strictest standards of the industry, and we guarantee quality, turnaround and competitive pricing.
The PLC splitter we offer are:1x2, 1x4, 1x8, 1x16, 1x32, 1x64, 2x4, 2x8, 2x16, 2x32, 2x64.
Features
* Small size, highly integrated, can be installed in various of cross-connection cabinet directly, and do not need large space for it
* Low insert loss, high uniformity
* Low PDL
* High return loss
* Wide wavelength coverage
* Anti-oxidant, anti-corrosion, excellant environment stability
* Good mechanical property
Applications
- Optical Fiber Communication
- CATV
- Optical Transmission Backbone
- Optical Fiber Test and Measurement Systems
Specification
| LGX Cassette PLC Splitter | |||||||
| TYPE | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | |
|
LGX Cassette BOX |
Body Material | ABS | |||||
| Dimension(LxWxH/mm) | 130x100x25 | 130x100x50 | 130x100x76 | 130x100x154 | |||
| Wavelength(nm) | 1260~1650 | ||||||
| Insertion Loss(dB) | <4.2 | <7.4 | <10.7 | <13.9 | <17.2 | <21.5 | |
| PDL(dB) | <0.2 | <0.2 | <0.3 | <0.3 | <0.3 | <0.4 | |
| Uniformity | <0.6 | <0.8 | <0.8 | <1.0 | <1.5 | <2.0 | |
| Temperature Range (°C) | -40~+75 | ||||||
| Connector | sc/upc, sc/apc, lc/upc, lc/apc, fc/upc, fc/apc | ||||||
Dimension
LGX type
| Size | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 2x2 | 2x4 | 2x8 | 2x16 | 2x32 | 2x64 |
| L (mm) | 130 | 130 | 130 | 130 | 130 | 130 | 130 | 130 | ||||
| W (mm) | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | ||||
| H (mm) | 25 | 50 | 102 | 206 | 25 | 50 | 102 | 206 | ||||
Detail Images
Product Types
Our advantages
1. The most moderate price
2. We are eager to establish long-term cooperation relationship with every customer,so we're responsible for our quality.we provide 3 years warrranty
3. We provide one-stop FTTH Solution Products. Besides, we can help you design unique new products and put into production.We care about innovation and would like to change for you and grow up with you.
4. With our own R&D, more completed production lines, advanced production & testing equipments,experienced staffs, we’re confident to provide you satisfied quality and service with competitive price and punctual delivery.
5. For your any queries or inquiries,we will try to reply you within 3 hours
