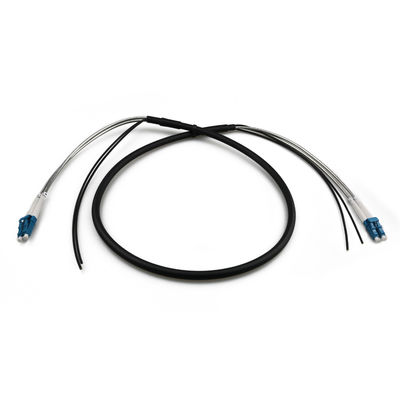

CPRI LC/UPC-LC/UPC connectors with Black LSZH 4.8mm, Duplex, G.657A2, 70 meters fiber optic patch cords
| Place of Origin | Shanghai |
|---|---|
| Brand Name | Yogel |
| Certification | ISO9001,ROSH |
| Model Number | CPRI LC/UPC-LC/UPC |
| Minimum Order Quantity | 1 pieces |
| Price | Negotiate |
| Packaging Details | with standard carton box or can be OEM by customers |
| Delivery Time | 3-5 work days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 10000 pieces per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Quality Control | 100% Test Before Shipping | Real Factory | Yes |
|---|---|---|---|
| Application | FTTH FTTB FTTX Network | ||
| Highlight | LSZH Fiber Optic Cable Assembly,4.8mm outdoor cable assemblies,4.8mm fiber optic assemblies |
||
Product Description
CPRI LC/UPC-LC/UPC connectors with Black LSZH 4.8mm, Duplex, G.657A2, 70 meters fiber optic patch cords
Description
This outdoor optical cable assembly can be used for connecting the Main Unit (MU) to the Radio Remote Unit (RRU). This optical cable can also be used as a jumper cable on both MU- and RRU-side when MU and RRU are connected to each other.
Features
- Low insertion loss & High return loss
- Connectors compliant with Telcordia GR-326, IEC 61754-20
- The cable fulfill 1301-TOL 405 9009
- Mechanical and environmental tests in accordance with IEC 60794 -1-2
- RoHS compliant
Applications
Multi-purpose Outdoor
For connection between distribution box and RRH
Deployment in Remote Radio Head cell tower applications
Fiber Structure
| Standards | ITU G.657 A2 / IEC60793-2-50 B6_a2 |
| Cladding Diameter | 125 ± 0.7 μm |
| Coating Diameter (Uncolored) | 245 ± 7 μm |
| Concentricity Error Core / Cladding | ≤ 0.5 μm |
| Concentricity Error Cladding / Coating | ≤ 12.0 μm |
| Cladding Non-Circularity | ≤ 1.0 % |
| Coating Non-Circularity | ≤ 6.0 % |
Fiber Requirements
| Cable Cut-Off Wavelength λcc | (nm) | ≤ 1260 |
| Polarization Mode Dispersion | (ps /√km) | ≤ 0.2 |
| Zero Dispersion Wavelength λo | (nm) | 1300 - 1324 |
| Zero Dispersion Slope S0 at λo | (ps/nm2•km) | ≤ 0.092 |
| Attenuation Typical, (In Cable) | 1310 / 1550 nm (dB/km) | ≤ 0.35 / ≤ 0.21 |
| Attenuation Maximum, (In Cable) | 1310 / 1550 nm (dB/km) | ≤ 0.40 / ≤ 0.25 |
| Chromatic Dispersion | 1310 / 1550 nm (ps/nm•km) | ≤ 3.5 / ≤ 18.0 |
| Bending Loss | 1550 nm, R = 7.5 mm (dB, 1 turn) | ≤ 0.5 |
| 1550 nm, R = 10 mm (dB, 1 turn) | ≤ 0.1 | |
| 1550 nm, R = 15 mm (dB, 10 turn) | ≤ 0.03 |
