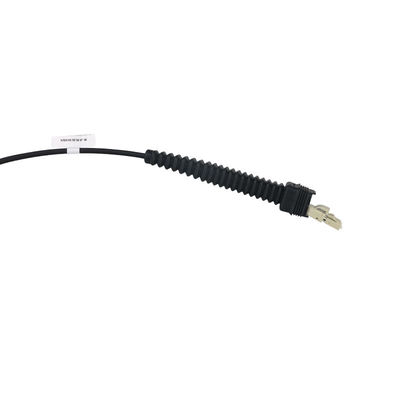

RRU CPRI Fiber Optic Cable Assembly
| Place of Origin | Shanghai |
|---|---|
| Brand Name | Yogel |
| Certification | ISO9001, ROSH |
| Model Number | Nokia Simons |
| Minimum Order Quantity | 1 pieces |
| Price | Negotiate |
| Packaging Details | with standard carton box or can be OEM by customer |
| Delivery Time | 3-5 work days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 10000 pieces per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | CPRI Fiber Optic Cable Assembly,RRU Fiber Optic Cable Assembly,CPRI outdoor cable assemblies |
||
|---|---|---|---|
Product Description
NSN Boot compatible Fiber Optic Connector, CPRI LC LC Armored Cable, RRU CPRI Cable
Description
This outdoor optical cable assembly can be used for connecting the Main Unit (MU) to the Radio Remote Unit (RRU). This optical cable can also be used as a jumper cable on both MU- and RRU-side when MU and RRU are connected to each other.
Features
1. High strength fatigue resistant fiber is adopted to ensure the reliability and life of the extended cable in various harsh service conditions.
2. Special coating layer and secondary coating compound structure, can absorb mechanical and environmental stress, the additional loss of the cable is small.
3. The fiber SZ stranded and arylon reinforced fiber single spiral stranded ensure that the far cable has a large tensile strain window.
4. High strength, light weight and high strength-to-weight ratio;The circular sheath is compact, especially suitable for repeated retracting and retracting.
- Low insertion loss & High return loss
- Connectors compliant with Telcordia GR-326, IEC 61754-20
- The cable fulfill 1301-TOL 405 9009
- Mechanical and environmental tests in accordance with IEC 60794 -1-2
- RoHS compliant
Applications
Multi-purpose Outdoor
For connection between distribution box and RRH
Deployment in Remote Radio Head cell tower applications
Specification
| Item | Data |
| Insertion Loss | ≤0.3dB |
| Mechanical life | 500cycles |
| Working temperature | -40°C~+70°C |
| Storage temperature | -40°C~+70°C |
| Operating temperature | -10°C~+50°C |
| Protection Level | IP67 |
| Tensile Data | Tensile between junction and fiber cable≥180N |
| Out shell inflaming retarding | UL94 V-0 |
| Out shell Uvioresistant | UL 746C |
| Authentication | Meet with RoHS |
