Singlemode 36.5x102x116mm MPO MTP Cassettes
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Fiber Type | SM Or MM | Connector Type | LC |
|---|---|---|---|
| Length | Customized, | Material | PVC/LSZH |
| Product Name | MPO/MTP Cassettes | Quality Control | 100% Test Before Shipping |
| Polish | APC, UPC, PC, PC/UPC/APC | ||
| Highlight | 36.5x102x116mm MPO MTP Cassettes,Singlemode MPO MTP Cassettes,LC Connector MPO MTP Cassettes |
||
Product Description

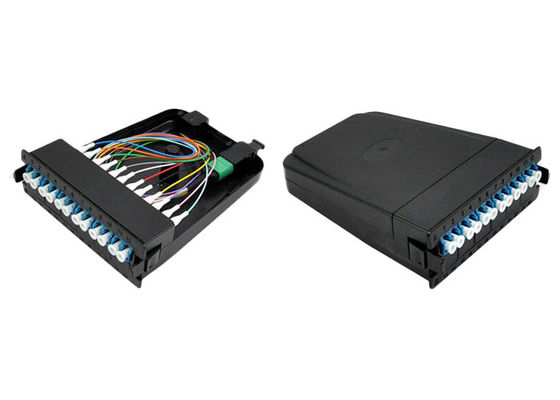

MPO/MTP Cassettes 12F LC fiber optic patch cord 36.5 x 102 x 116 (mm) Single mode Blue
Introduction
MPO&MTP Cassettes are designed for Data Center Solutions supporting the to pologies as specified in the Data Center
Standards EN50173-5 and ISO/IEC24764. MPO&MTP cassettes connected with MPO Trunk or MPO Patch cables
provide the possibility to make cross-connections or inter-connections to end equipment. MPO&MTP Cassettes are
available in options:MPO–LC(12 or 24 fiber ), These cassettes are availablein OS2,OM3& OM4 and polarity options
are available instraight and pair flipped wire map.
Features:
*Standard size, light weight and reasonable structure
*Compact design for space saving
*Front mark on the plate is easy for identification and operation
*Easy for management and operation.
*Supports 40G and 100G network applications
*High reliability
*Excellent environmental stability
Application:
*Telecommunications subscriber loop
*Fiber to the home (FTTH)
* LAN/WAN
*. CATV
*Other applictaions in fiber optic systems
Mechanical and environmental characteristics:
| Projects | Parameter |
| Operating temperature | -25℃~+70℃ |
| Storage temperature | -25℃~+70℃ |
| Relative Humidity | ≤85%(+30℃) |
| Color | Black |
| Max.Capacity | 12 or 24 port (LC) |
| Dimension(L*W*H) | 116mmx 101mmx36.5mm |
Dimension:
Environmental Properties
| Performance Level | Standard | Elite | |||
| Connector | Cable | IL(max) | RL(max) | IL(max) | RL(max) |
| MPO/MTP | OM4 | ≦0.70dB | ≧20dB | ≦0.35dB | ≧20dB |
| LC | OM4 | ≦0.20dB | ≧30dB | ≦0.10dB | ≧30dB |
