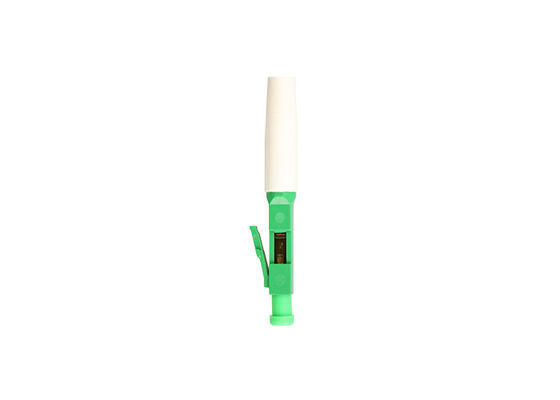

45mm LC/APC Fiber Optic Fast Connectors
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | FAOC7103-2-ALC 45mm Fast Connector | Return Loss | ≥ 60dB |
|---|---|---|---|
| Cable Diameter | 0.9mm/2.0mm/3.0mm | Length | 45mm |
| Insertion Loss | ≤0.2dB | Durability | More Than 1000 Times |
| Connector Type | SC FC LC APC | Packing | Customized Request |
| Highlight | 45mm Fiber Optic Fast Connectors,45mm ftth fast connector,60dB fiber optic quick connectors |
||
Product Description
FAOC7103-2-ALC
Easy To Operate FTTH Field Assembly Connector
LC Fiber Optic Fast Connector
Description
The fiber optic connector assembly (Field Assembly Connector or Field terminated fiber connector, quickly assembly Fiber connector) is a revolutionary field installable optical fiber connector that requires no epoxy and no polishing. The unique design of the patented mechanical splice body incorporates a factory-mounted fiber stub and a pre-polished ceramic ferrule. Using this onsite assembly optical connector, it is possible to improve the flexibility of optical wiring design as well as reducing the time required for fiber termination. The Fast connector series are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and FTTH.
Products Images
Features
Field Assembly Optical Connector (FAOC) is designed to enables easy and quick fiber termination on site with unique V-groove mechanical splice technology and double locking system, therefore providing a significant support for users in the construction of FTTH network.
- Compatible with factory-assembled conventional standard SC connectors
- Easy and Quick assembly (within 2minutes) without special tools
- No need electric power, polishing, epoxy or adhesive on site
- Reliable assembly with assembly guide jig
- Available splice inspection with visible light source or optical power meter on site
- Available to re-assembly process after Termination more than 5 times
Specifications
| Part number | FAOC7103-2-ALC | FAOC7103-2-ULC | FAOC7203-2-ULC |
| Connector type & Polish | LC/APC | LC/UPC | LC/UPC |
| Fiber type |
Single Mode, ITU-T G.652D / G.657A Standard |
MM,OM1,OM2,OM3 | |
| Compatible cable type | 3.1*2.0mm/1.6*2.0mm flat FTTH drop cable (Bow type or “8”type) and 3.0mm round cable | ||
| Wavelength | 1310nm, 1490nm, 1550nm | ||
| Insertion loss |
Typ. ≦0.3dB (max. 0.5dB) |
Typ. <0.2dB (max. 0.5dB) |
Typ. <0.1dB (max. 0.3dB) |
| Return loss |
Typ. ≧60dB (min. 50dB) |
Typ. ≧50dB (min. 40dB) |
Typ. ≧35dB (min. 22dB) |
| Bare fiber fastening strength | ≥5N (ΔIL≤0.3dB) | ||
| Tensile strength | ≥50N (ΔIL≤0.3dB) | ||
| Operating temperature | -40 to 85°C | ||
| Success rate | >98%(for the first time) | ||
| Standard | Compliance with YD/T 2341.1-2011 specifications | ||
Ordering Information:
Details Image:
Procedure :
FAQ :
1.Do you provide free samples?
A: yes, we can supply some free samples , the buyer should pay the shipping cost. (Different products sample from place to place)
2. Are you manufacturer of treading company?
A: We are manufacturer, our factory located in ShangHai province, welcome to visit our factory.
3.What is your delivery time?
A: It depending on the order quantity, normally the bulk order delivery time 5-10days.
4, Can you supply OEM products under our band?
A: Yes, we can. But we can accept OEM service with be finished with OEM package, you just need to send your detailed requirements.
5, How to proceed an order?
A: First let us know your requirements or application.
Secondly we quote according to your requirements or our suggestions.
Thirdly customers confirm the samples and places deposit for formal order.
Fourthly we arrange the production.
