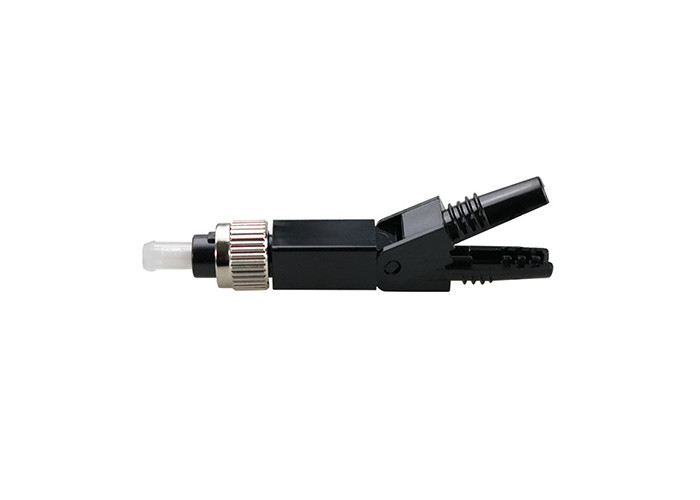

Black 55mm FC UPC Fiber Optic Fast Connectors

Place of Origin	Shanghai
Brand Name	Yogel
Certification	ISO9001
Model Number	FAOC3106-UFC
Minimum Order Quantity	1
Price	Negotiate
Packaging Details	with standard carton box or can be OEM by customer
Delivery Time	3-5 working days
Payment Terms	L/C, T/T
Supply Ability	200000 per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Connector Type

Product Name

FTTH SC Fast Quick Connector

Lead Time

3-7working Days

Highlight

FC UPC Fiber Optic Fast Connectors

55mm Fiber Optic Fast Connectors

55mm fiber optic quick connectors

Leave a Message

Product Description

55mm Black FC/UPC Fiber Optic Fast Connectors Quickly Connectors

Description:

Field Assembly Optical Connector (FAOC) is designed to enables easy and quick fiber termination on site with unique V-groove mechanical splice technology and double locking system, therefore providing a significant support for users in the construction of FTTH network.

Features:

Compatible with factory-assembled conventional standard FC connectors
Easy and Quick assembly (within 2minutes) without special tools
No need electric power, polishing, epoxy or adhesive on site
Reliable assembly with assembly guide jig
Available splice inspection with visible light source or optical power meter on site
Available to re-assembly process after Termination more than 5 times

Specifications:

Part number	FAOC3106-2-AFC	FAOC3106-2-UFC	FAOC3206-2-UFC
Connector type & Polish	FC/APC	FC/UPC	FC/UPC
Fiber type	Single Mode, ITU-T G.652D / G.657A standard		MM,OM1,OM2,OM3
Compatible cable type	3.12.0mm/1.62.0mm flat FTTH drop cable (Bow type or “8”type) and 3.0mm round cable
Wavelength	1310nm, 1490nm, 1550nm
Insertion loss	Typ. ≦0.3dB (max. 0.5dB)	Typ. <0.2dB (max. 0.5dB)	Typ. <0.1dB (max. 0.3dB)
Return loss	Typ. ≧60dB (min. 50dB)	Typ. ≧50dB (min. 40dB)	Typ. ≧35dB (min. 22dB)
Bare fiber fastening strength	≥5N (ΔIL≤0.3dB)
Tensile strength	≥50N (ΔIL≤0.3dB)
Operating temperature	-40 to 85°C
Success rate	>98%(for the first time)
Standard	Compliance with YD/T 2341.1-2011 specifications

Black 55mm FC UPC Fiber Optic Fast Connectors 0

Black 55mm FC UPC Fiber Optic Fast Connectors 1
